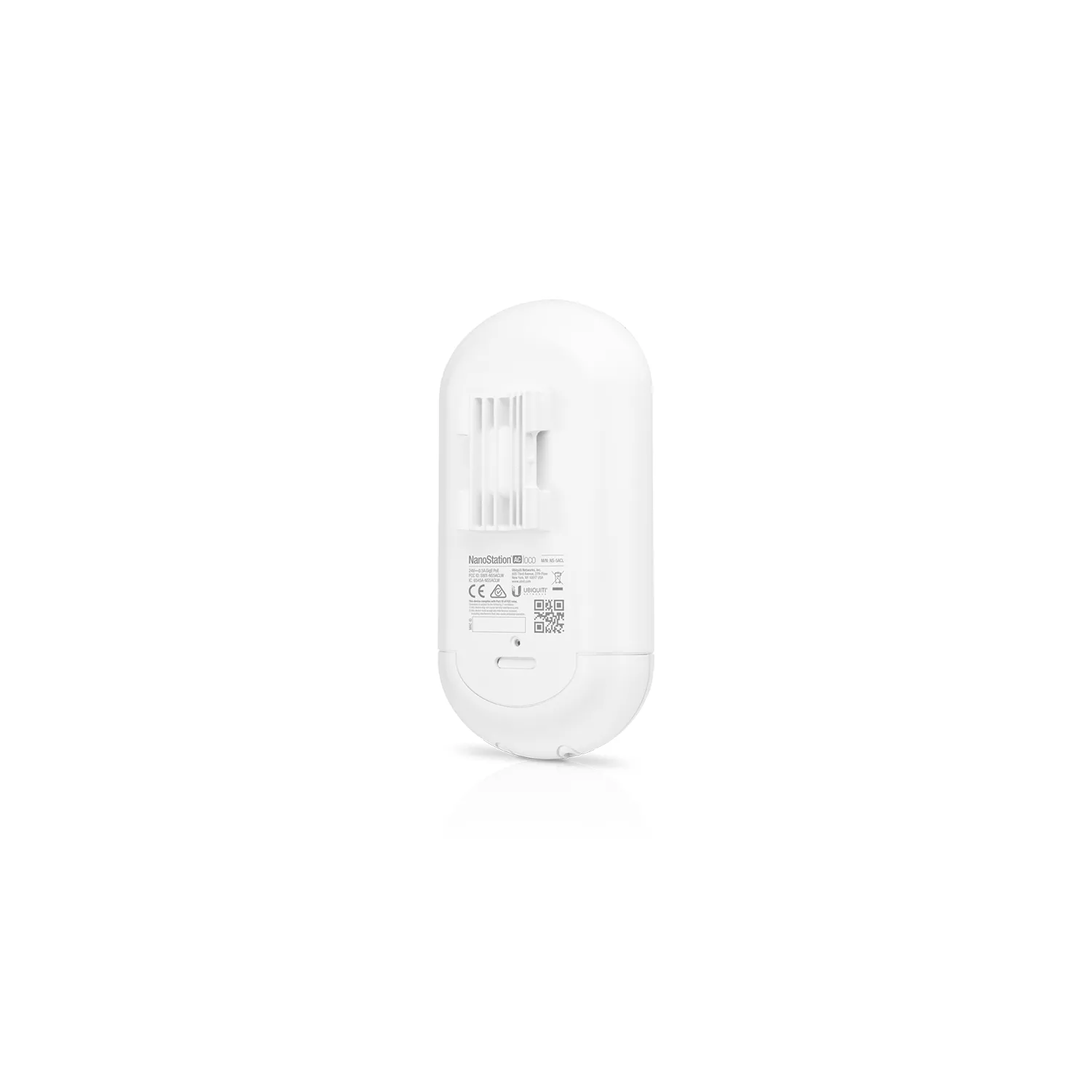

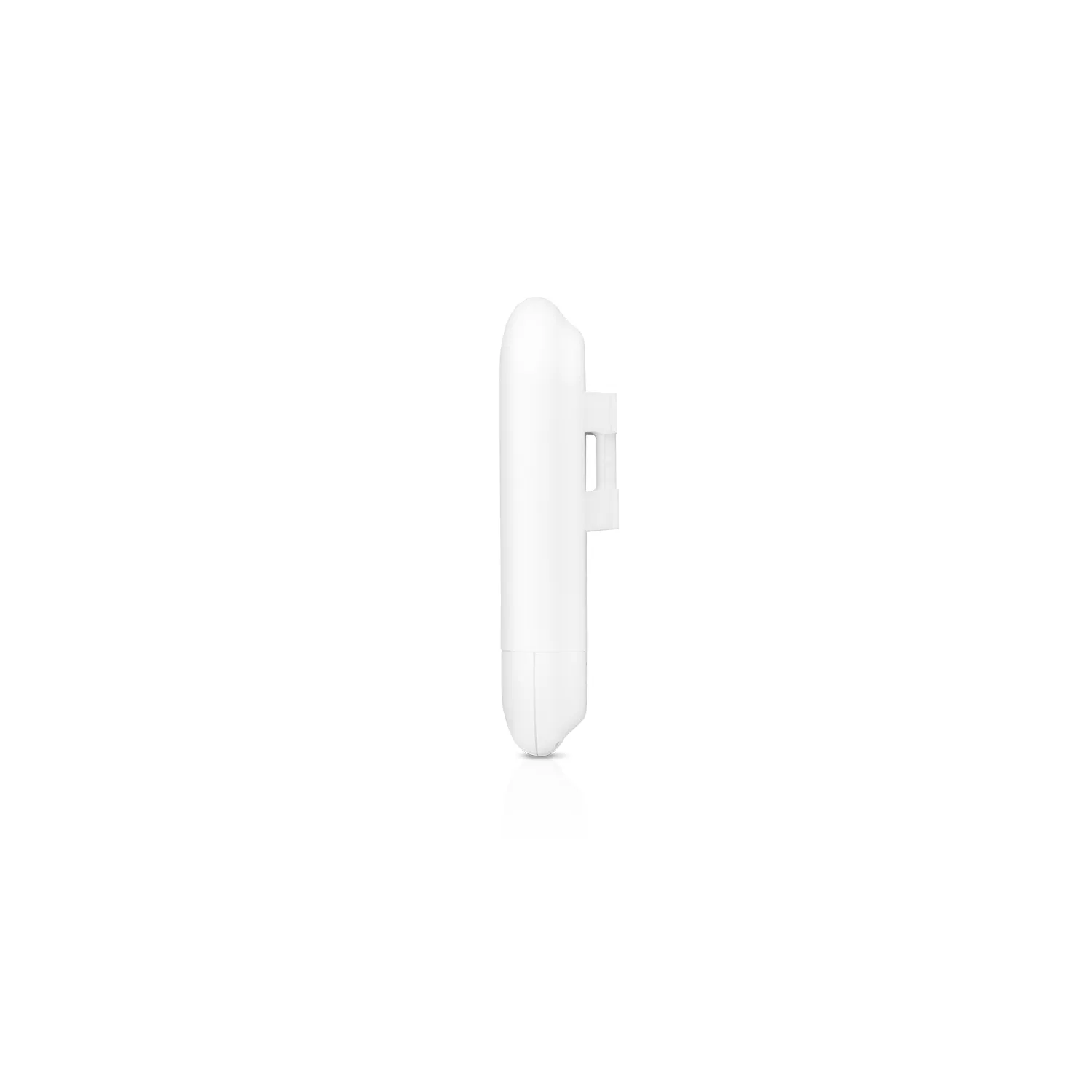

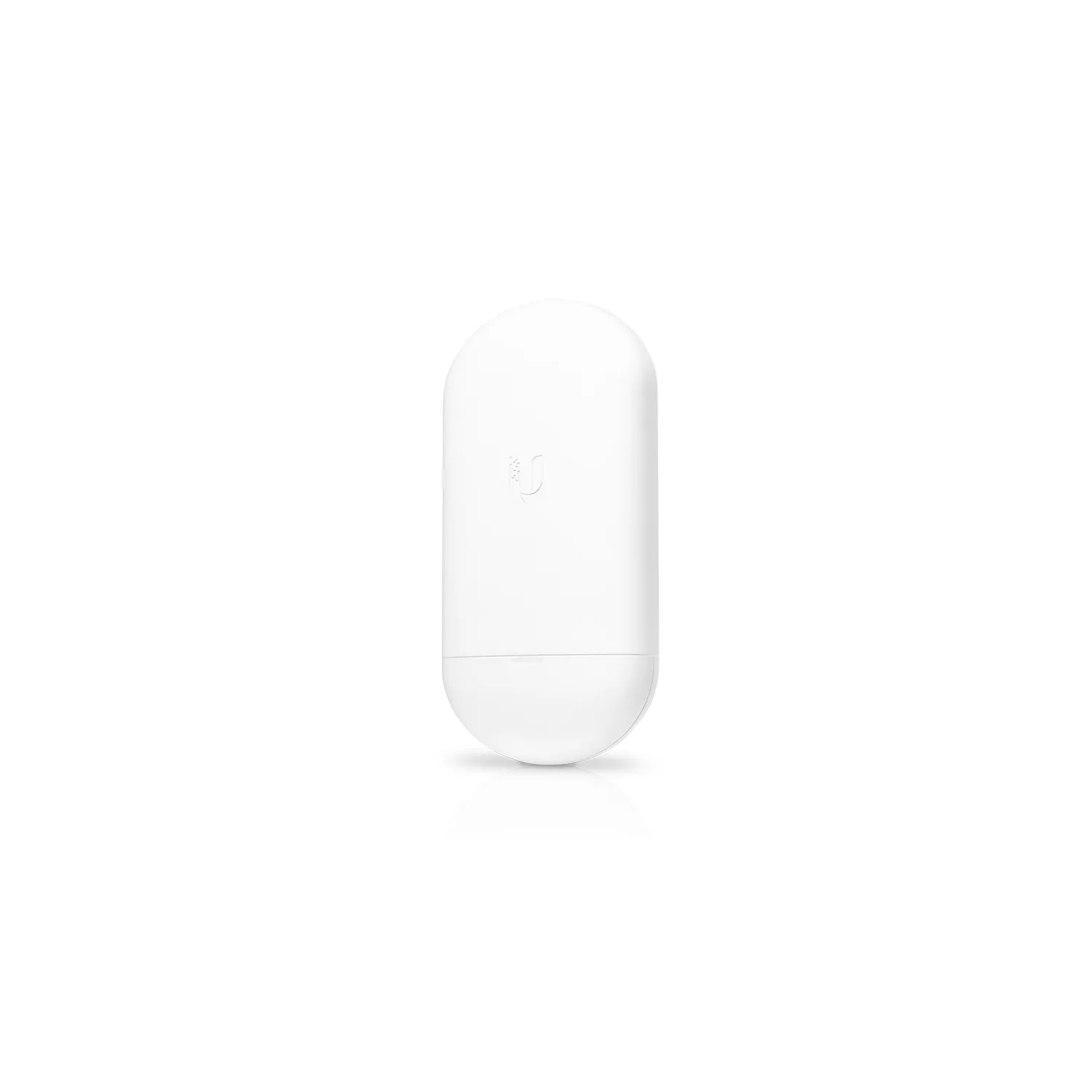

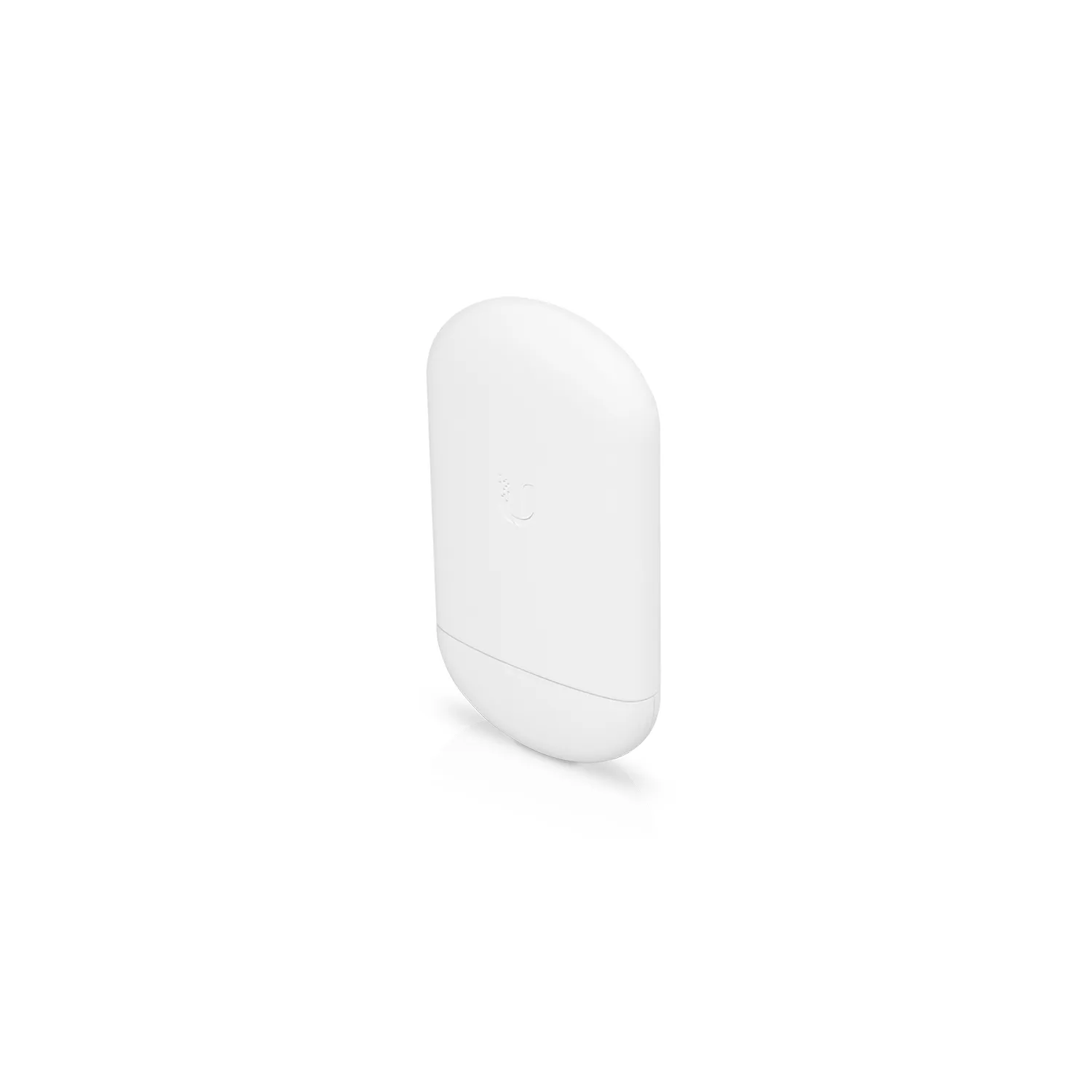

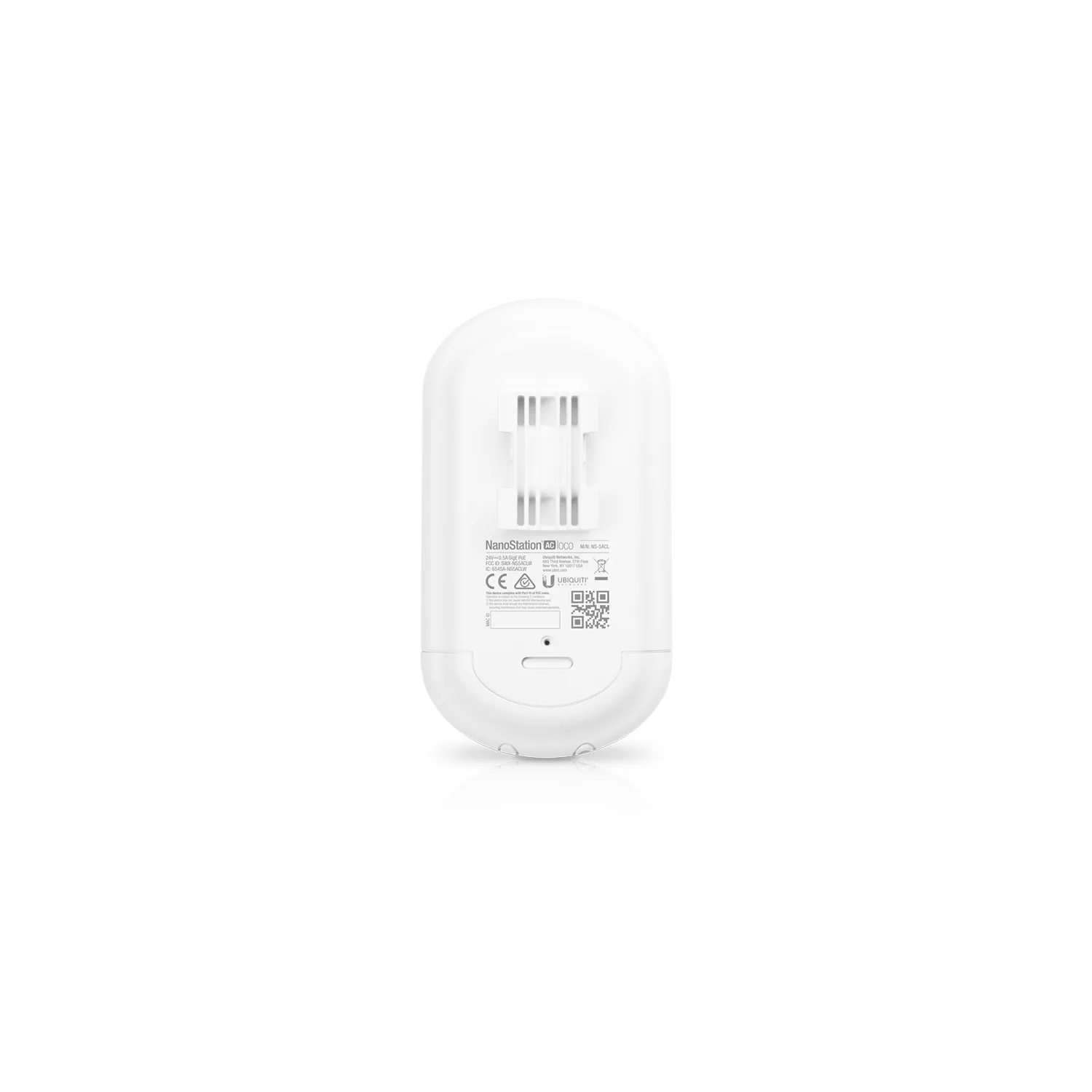

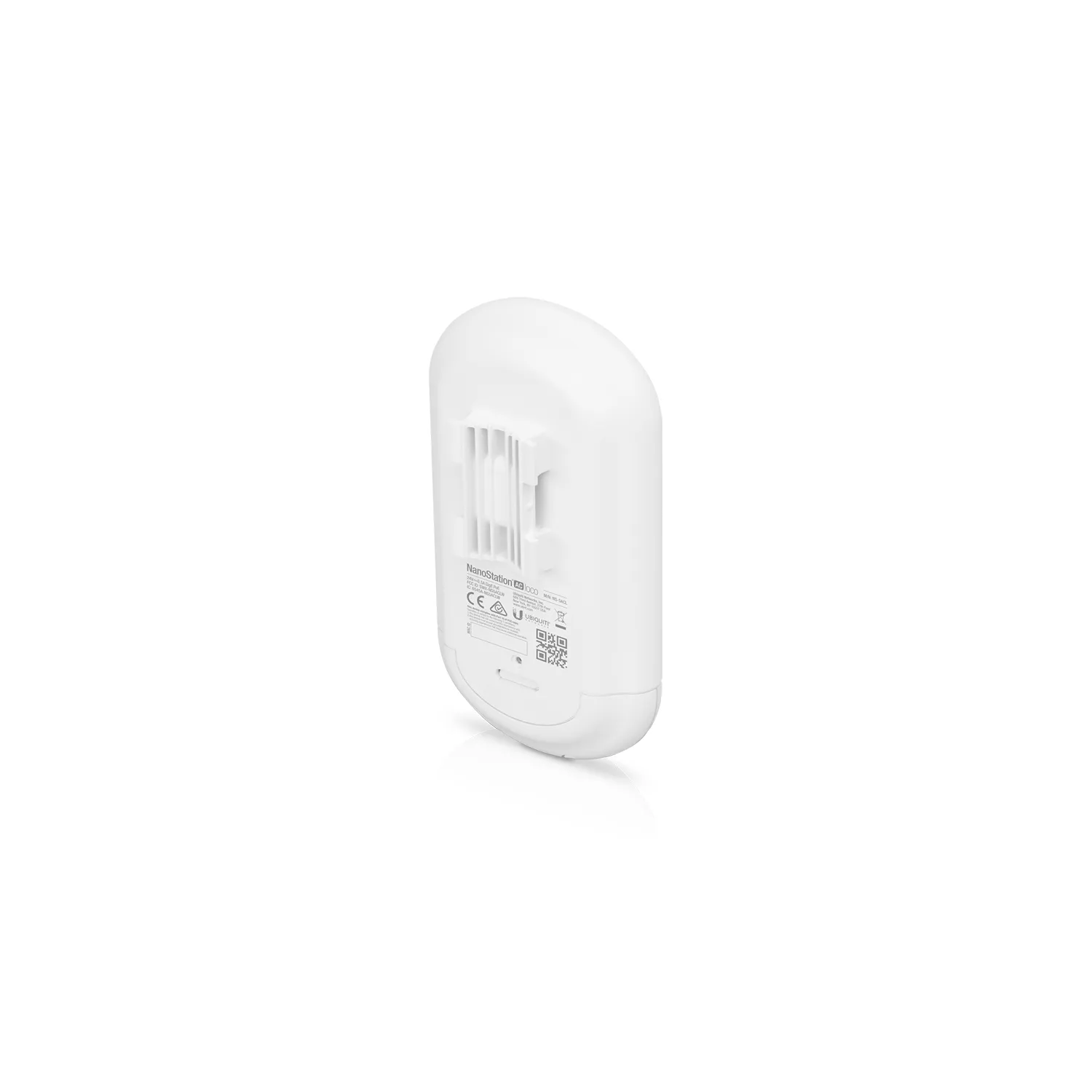

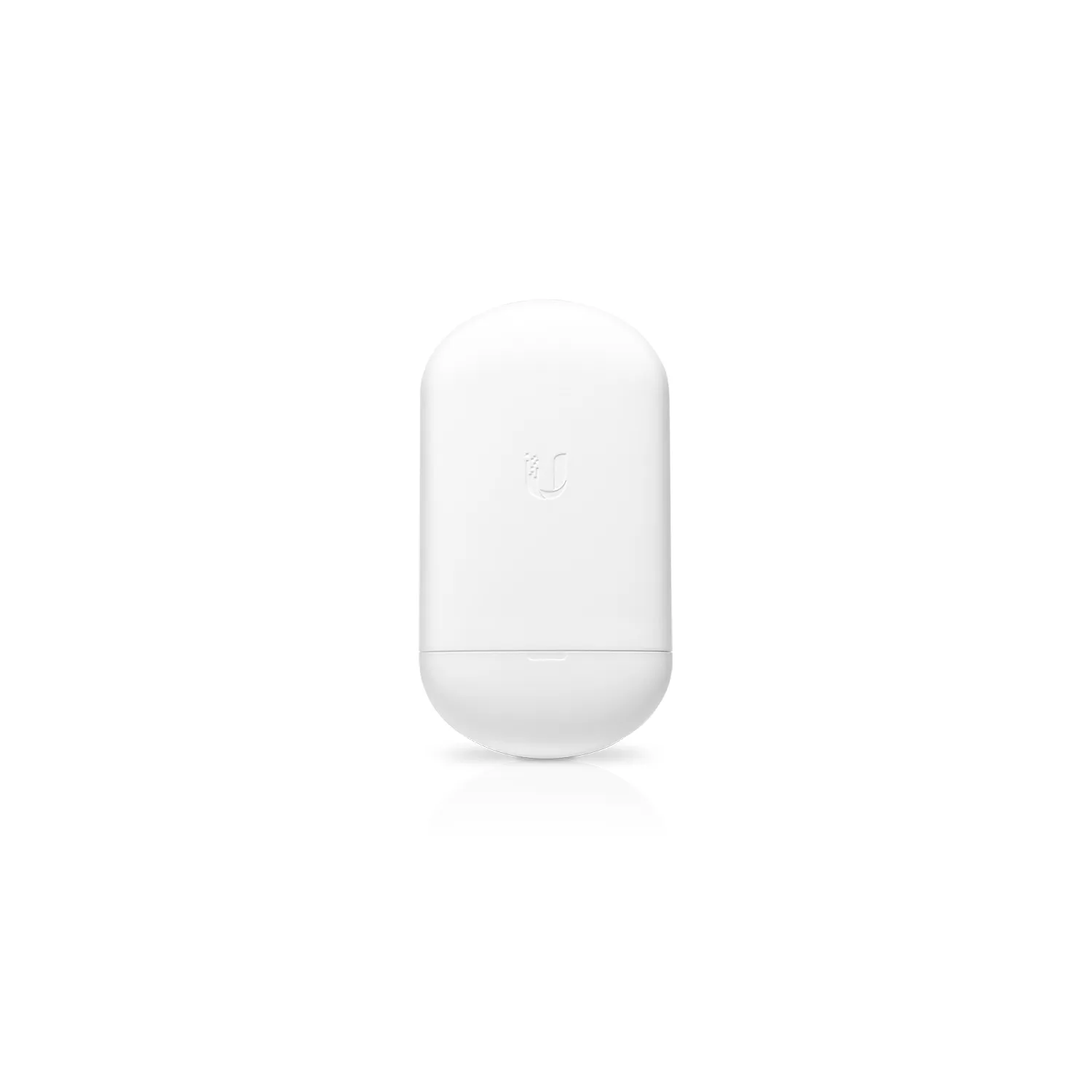

Ubiquiti airMAX NanoStation 5AC Loco

Write a review
Other vendors from Ks. ‍0‍ View (1)
BrandUbiquiti Model no.LOCO5AC-5

About this item



Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset

7 days
Add to wish list
Pickup & Collect
Payment options:
  • — Credit card
  • — Phone ordering
  • — MyanMyanPay
✅ Shop with Confidence
⭐ Why Megamall
Need Help? We’re Here for You
Find similar:
View all options

No reviews found

Brand
Ubiquiti
Model no.
LOCO5AC-5
Quantity unit
Pack of 5
Mechanical
Dimensions 179 x 77.5 x 59.1 mm
(7.1 x 3.1 x 2.3")
Weight 180 g (6.4 oz)
Enclosure Materials UV-stabilized polycarbonate
Mounting Pole Mount (Included)
Hardware

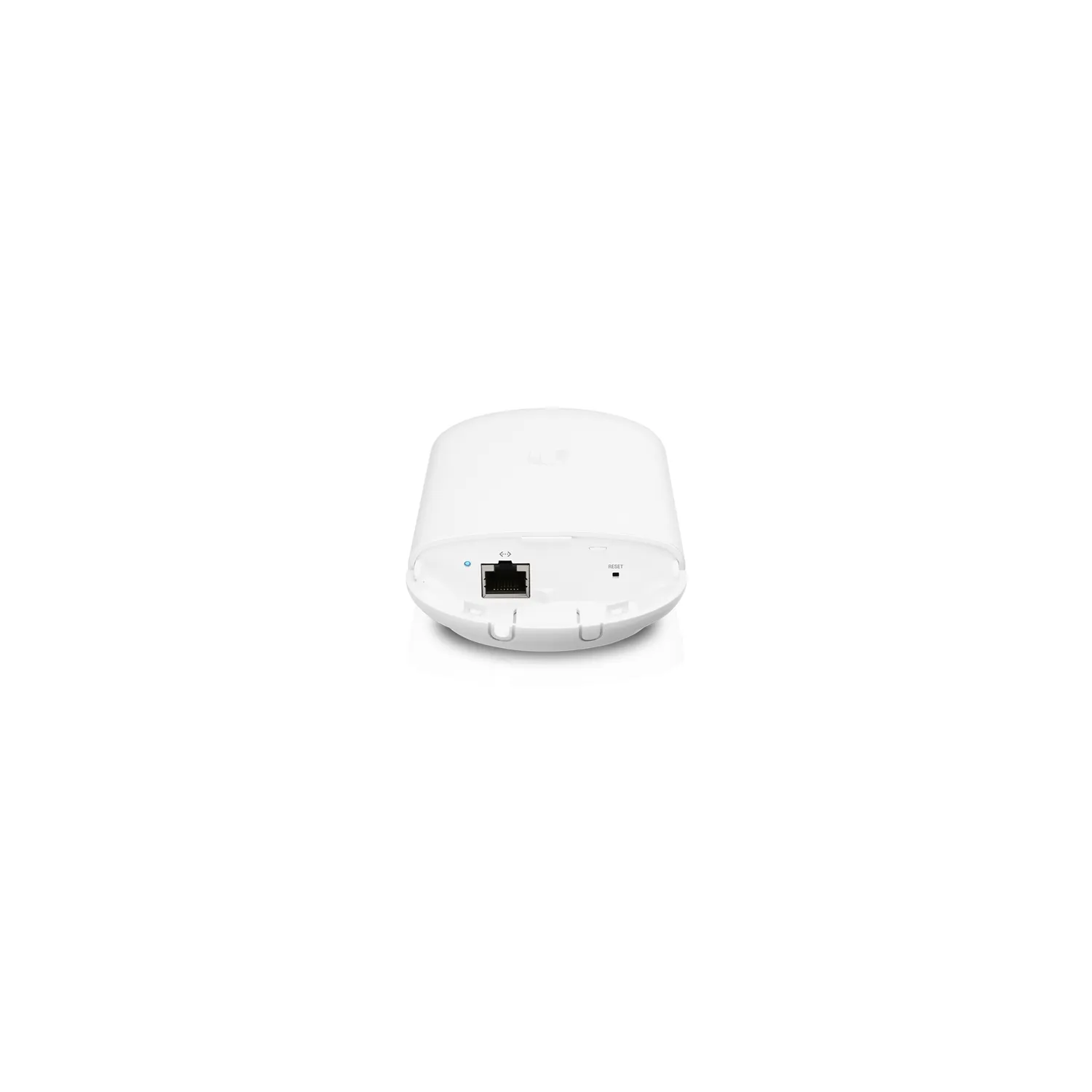

Networking Interface (1) GbE RJ45 port
Power Method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply 24V, 0.3A gigabit PoE supply (Not Included)
Supported Voltage Range 22–27V DC
Max. Power Consumption 7W
LEDs
  ? Signal Strength ?
  ? Power ?
  ? Ethernet ?
Ambient Operating Temperature -40 to 70° C (-40 to 158° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant ?
Certifications CE, FCC, IC, Anatel: 01405-19-08356
Software
Operating Modes Access Point
Station
Ubiquiti Specific Features
  ? airMAX AC Mode ?
  ? Discovery Protocol ?
  ? Frequency Band Offset ?
  ? Traffic Shaping with Burst Support ?
  ? 30/50/60 MHz Channels ?
Services
  ? Bridging ?
  ? DHCP ?
  ? Ping Watchdog ?
  ? Routing ?
  ? SNMP ?
  ? SSH ?
  ? Webserver ?
Distance Adjustment
  ? Ackless Mode ?
  ? Dynamic Ack ?
QoS WMM packet classification with user-level priority: High, Medium, Low
Statistical Reporting
  ? Data Rates ?
  ? Ethernet Link Rate ?
  ? Packet Errors ?
  ? Up Time ?
  ? Wireless Distance ?
System
Channel Bandwidth 10/20/30/40/50/60/80 MHz
Antenna Gain 13 dBi
Max. VSWR 1.8:1
Polarization Dual-Linear
Antenna beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Cross-Pol Isolation Min. 20 dB
Radio Frequency
Supported Frequency Range
  ? Worldwide 5150 - 5875 MHz
  ? US/CA U-NII-1: 5150-5250 MHz
U-NII-2A: 5250-5350 MHz
U-NII-2C:5240-5725 MHz
U-NII-3: 5725-5850 MHz
Management Radio (MHz)
Supported Frequency Range
  ? Worldwide 2412 - 2472 MHz
  ? US/CA 2412 - 2462 MHz
