Brand
Ubiquiti
Model no.
LTU-LITE
| Mechanical | |

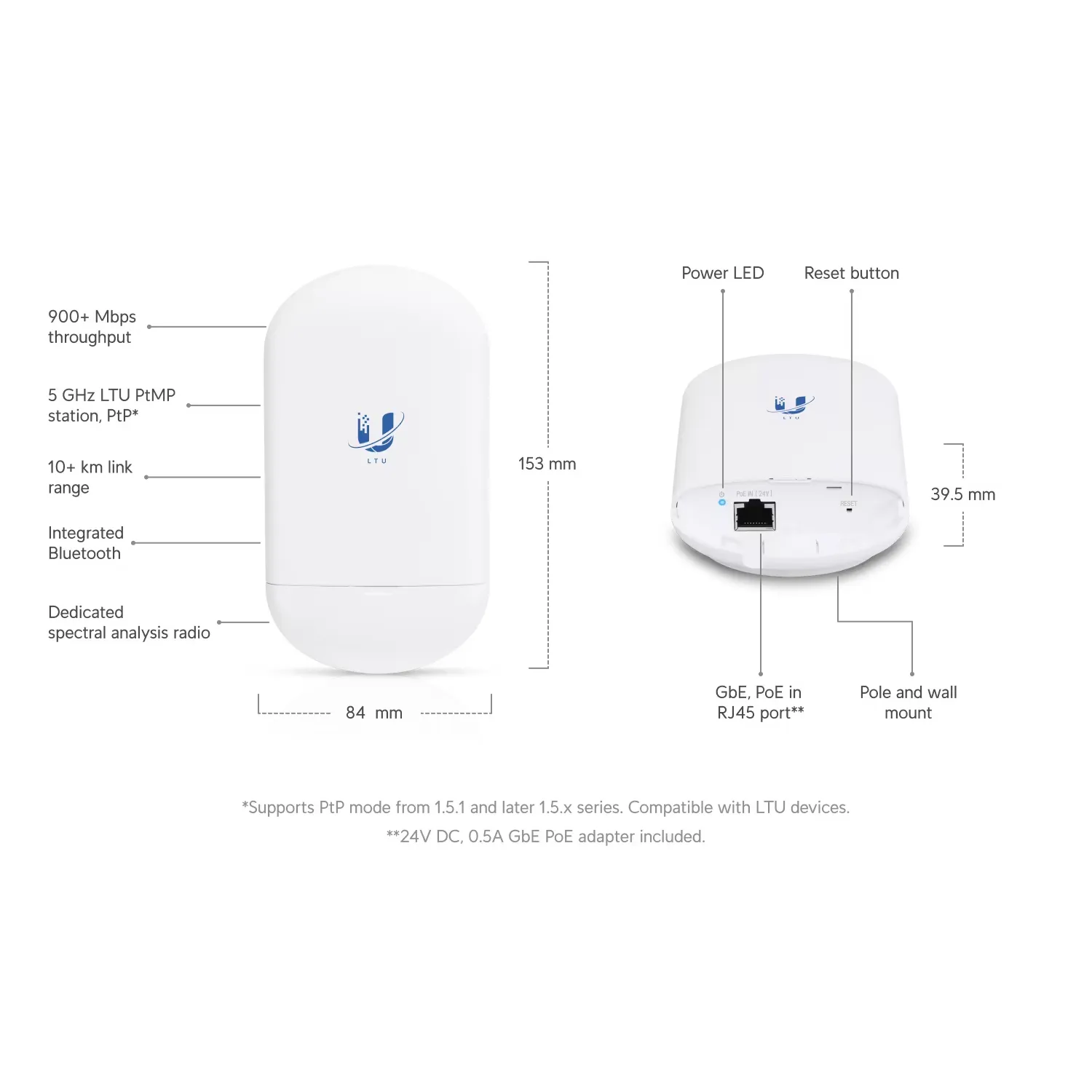

| Dimensions | 153 x 84 x 39.5 mm (6 x 3.3 x 1.6") |
| Weight | 250 g (8.8 oz) |
| Enclosure material | UV-stabilized polycarbonate |
| Mounting | Pole mount, wall mount (Kit included) |
| Wind loading | 20 N at 200 km/h (4.5 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Weatherproofing | IPX5 |
| Hardware | |

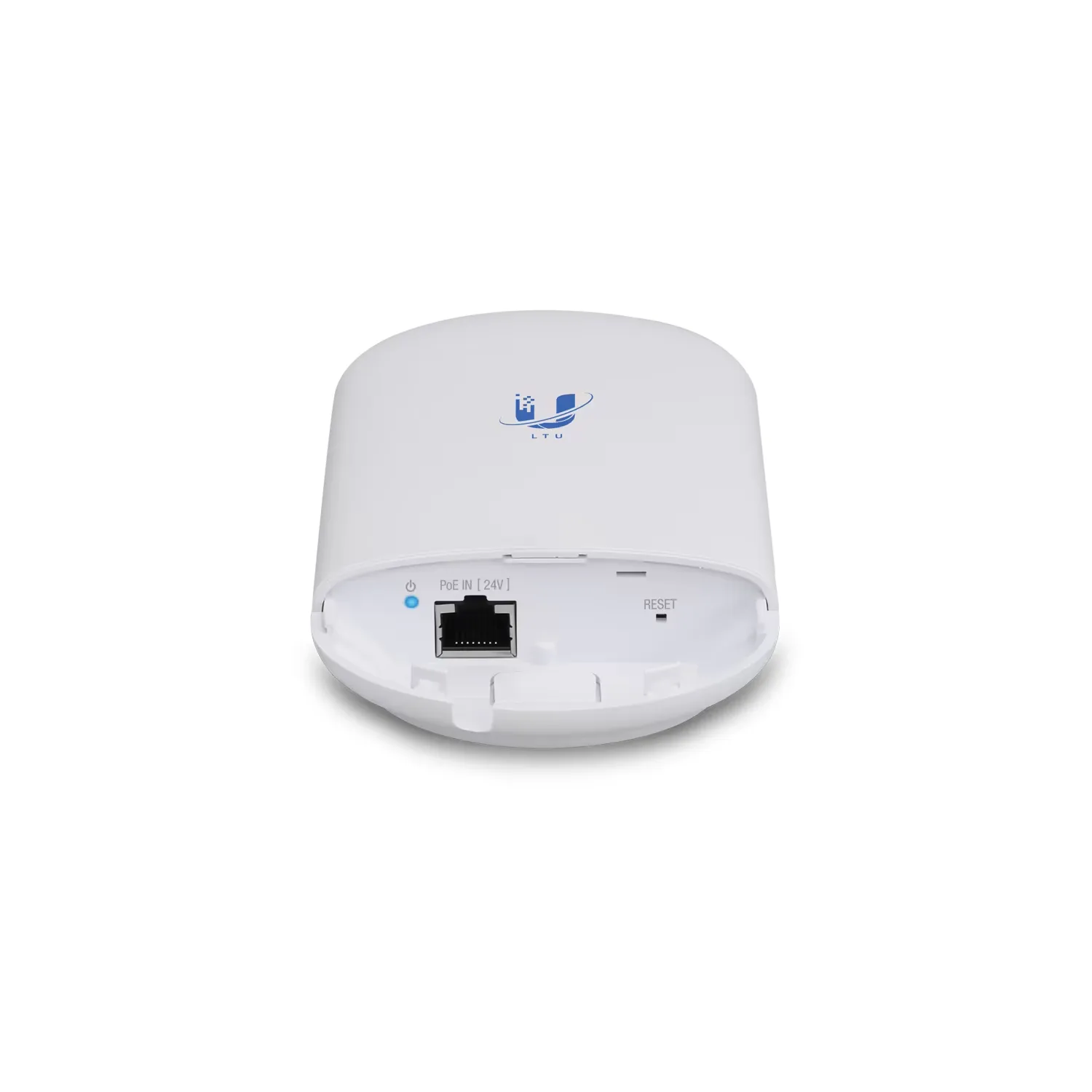

| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 2227V DC |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact: ± 24kV |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Software | |
| Modes | PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware. |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is available in PtMP CPE mode only. |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS or Android based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* | |
| US/CA | |
| ? U-NII-1 | 5150 - 5250 MHz |
| ? U-NII-2A | 5250 - 5350 MHz |
| ? U-NII-2C | 5470 - 5725 MHz |
| ? U-NII-3 | 5725 - 5850 MHz |
| EU | 2400 - 2483.5 MHz 5150 - 5875 MHz |
| Worldwide | 2400 - 2483.5 MHz 4800 - 6200 MHz *Depends on regulatory region. |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 13 dBi |
| Cross-pol isolation | 20 dB |
| Beamwidth | HPOL/VPOL/elevation: 45° |
| Polarization | Dual linear |
