Description
The new MikroTik flagship with the power of a whole fleet. Unleash the power of 100 Gigabit networking with L3 Hardware Offloading! This router can be a handy drop-in upgrade for existing CCR1072 setups.

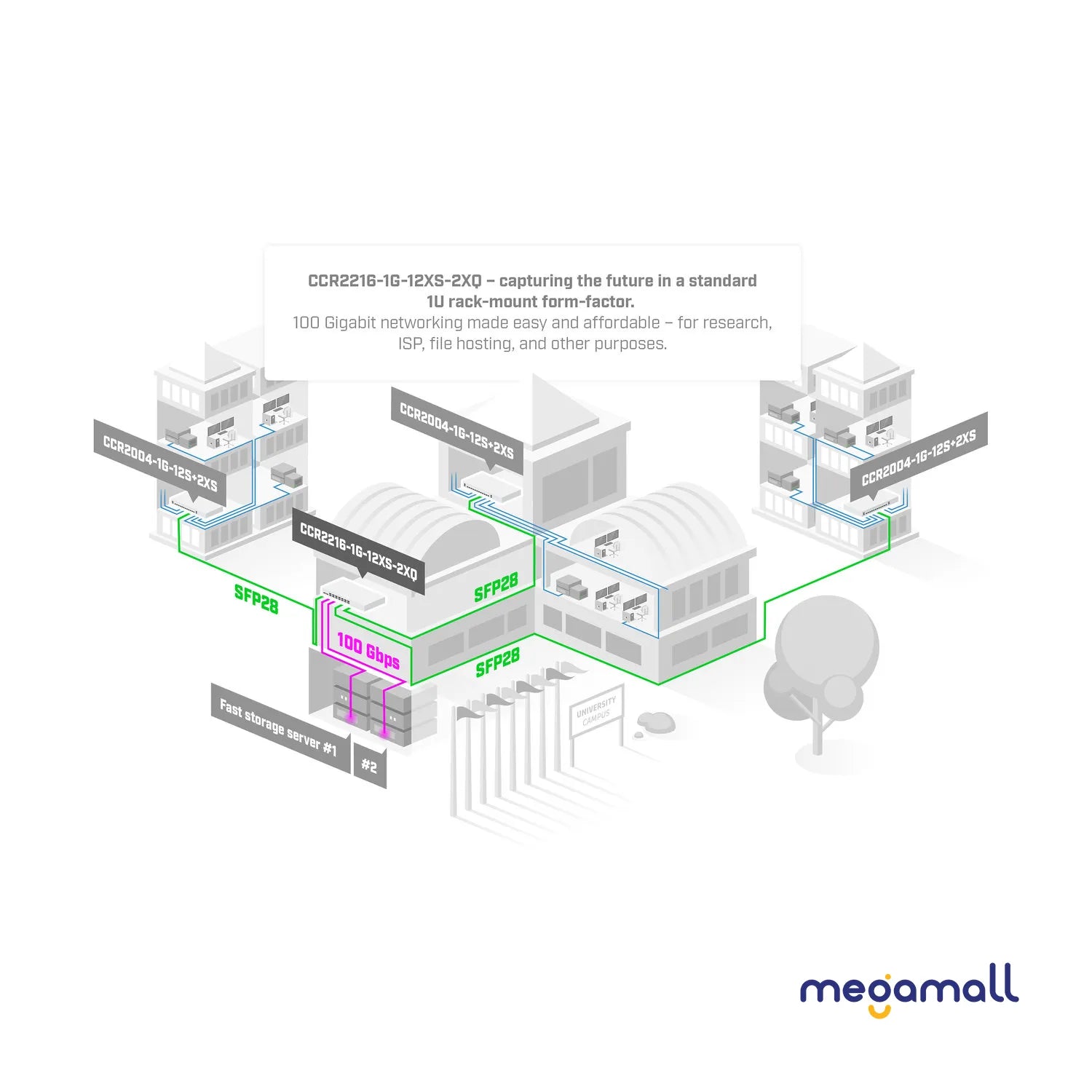

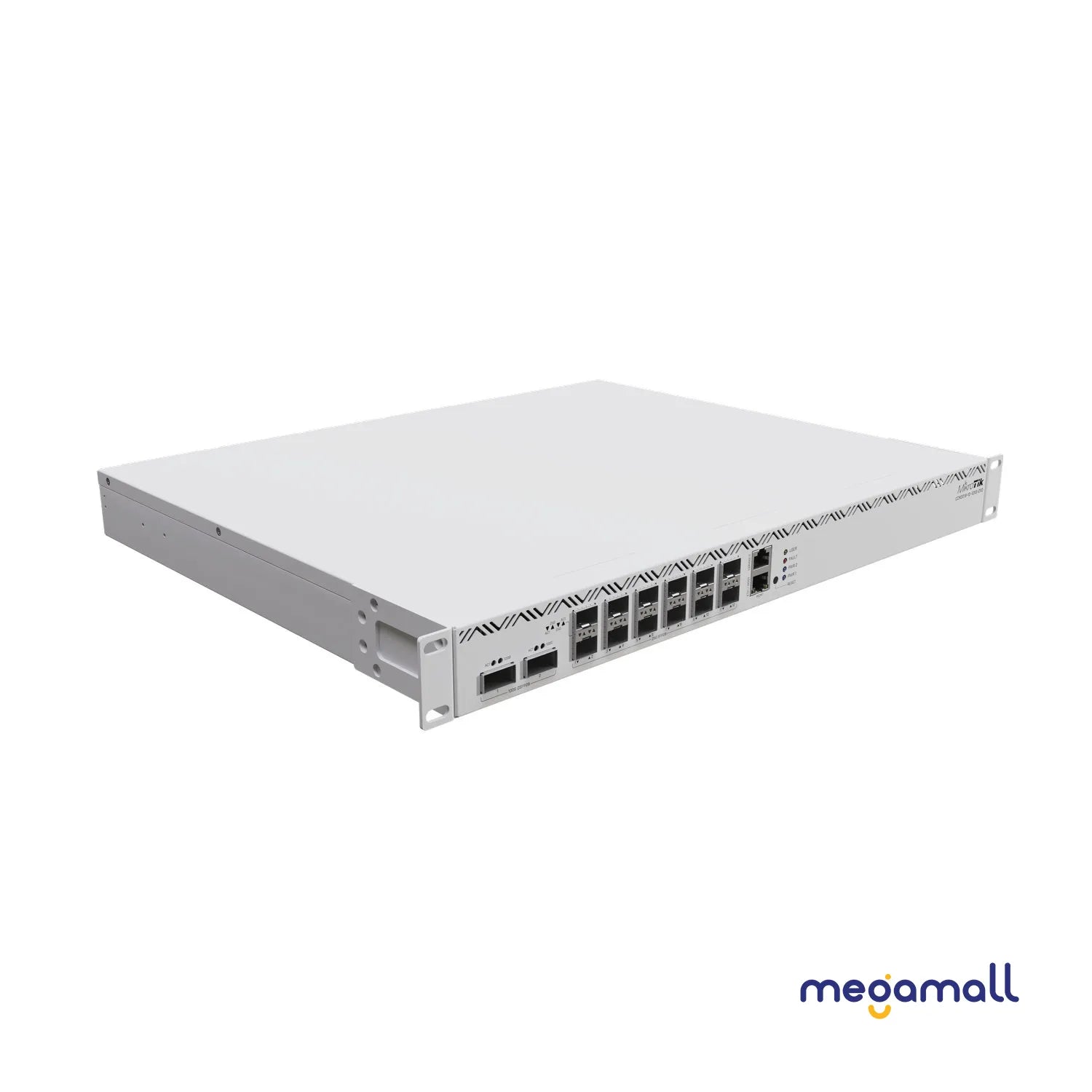

Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.
But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

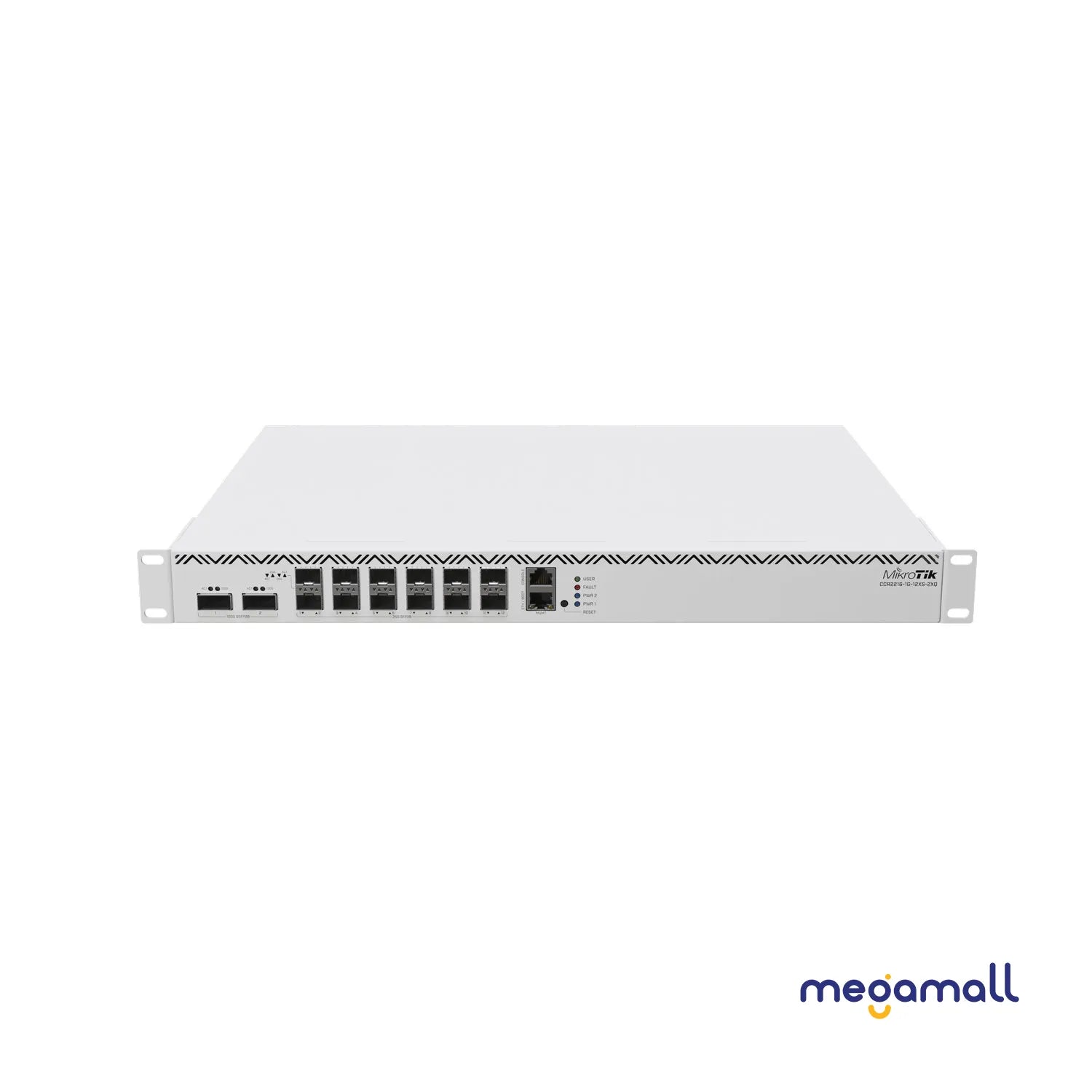

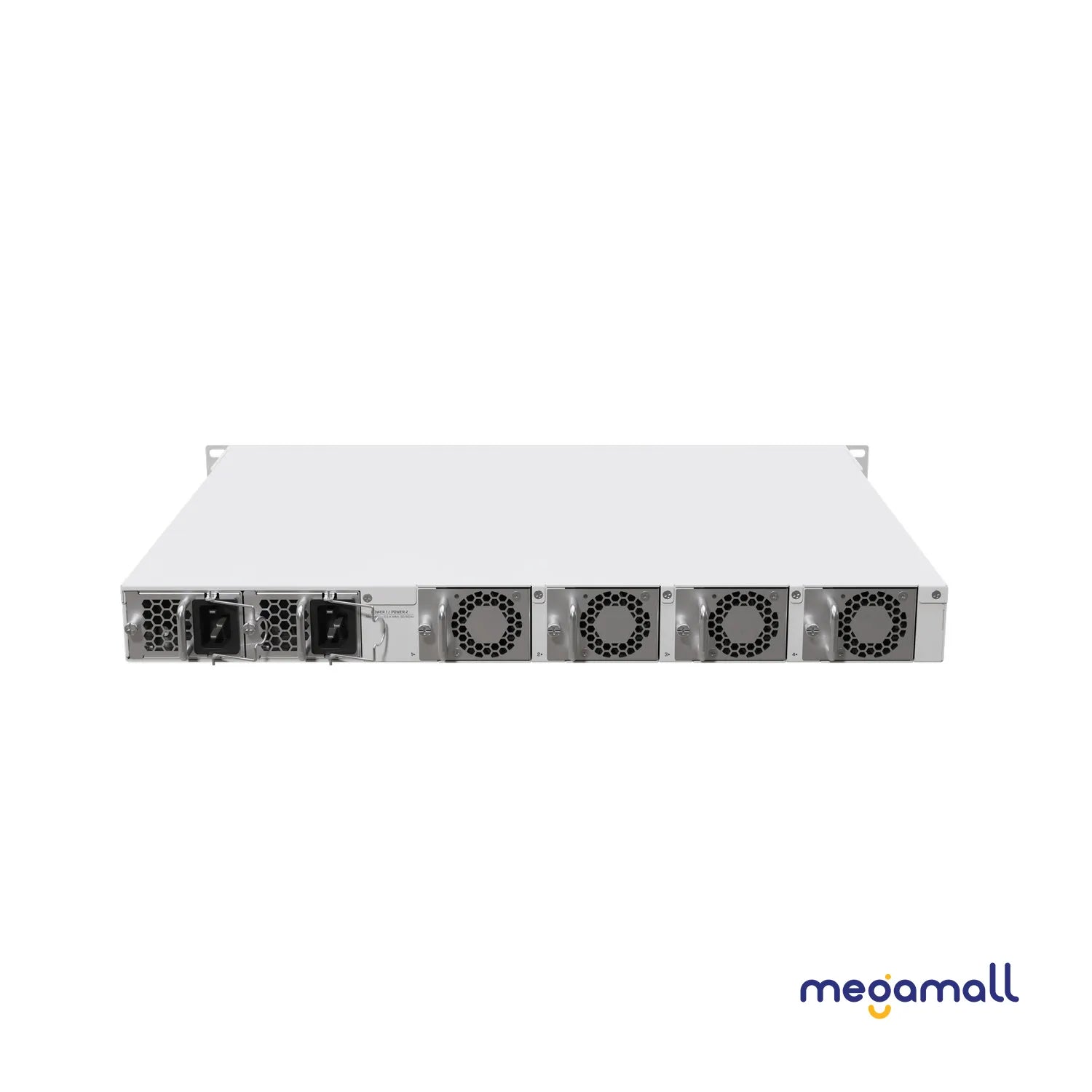

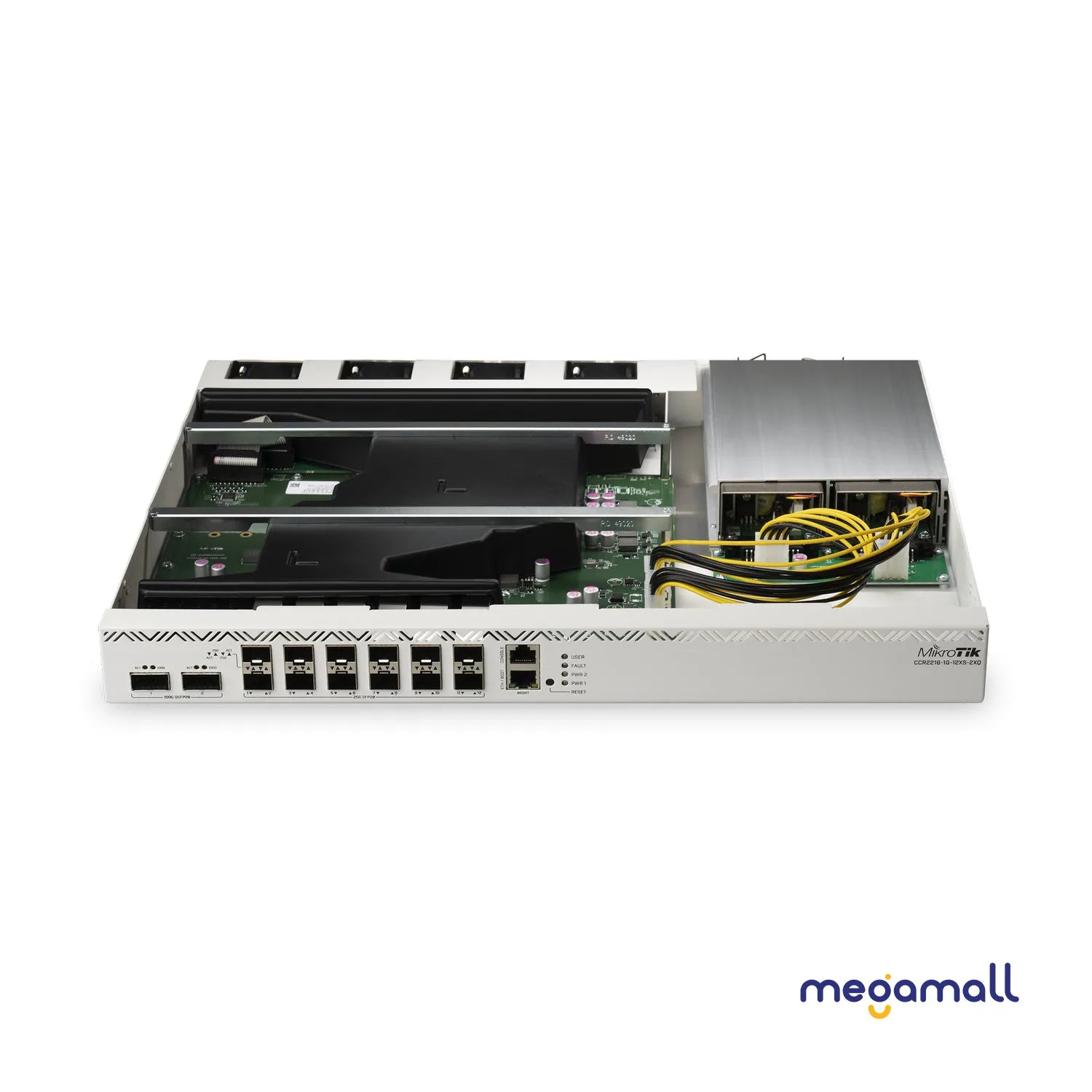

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.
You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!
Specification | Product code | CCR2216-1G-12XS-2XQ |
Architecture | ARM 64bit | |
CPU | AL73400 | |
CPU core count | 16 | |
CPU nominal frequency | 2000 MHz | |
Switch chip model | 98DX8525 | |
Dimensions | 443 x 367 x 44 mm | |
RouterOS license | 6 | |
Operating System | RouterOS (v7 only) | |
Size of RAM | 16 GB | |
Storage size | 128 MB | |
Storage type | NAND | |
MTBF | Approximately 200'000 hours at 25C | |
Tested ambient temperature | -20°C to 60°C | |
IPsec hardware acceleration | Yes | |
Powering | Number of AC inputs | 2 |
AC input range | 100-240 | |
Max power consumption | 128 W | |
Max power consumption without attachments | 80 W | |
Cooling type | 4 fans | |
Ethernet | 10/100/1000 Ethernet ports | 1 |
Fiber | Number of 25G SFP28 ports | 12 |
Number of 100G QSFP28 ports | 2 | |
Peripherals | Serial console port | RJ45 |
Number of M.2 slots | 2 | |
Other | CPU temperature monitor | Yes |
PCB temperature monitor | Yes | |
Voltage Monitor | Yes | |
Warranty | Warranty | 1 year |
