Description

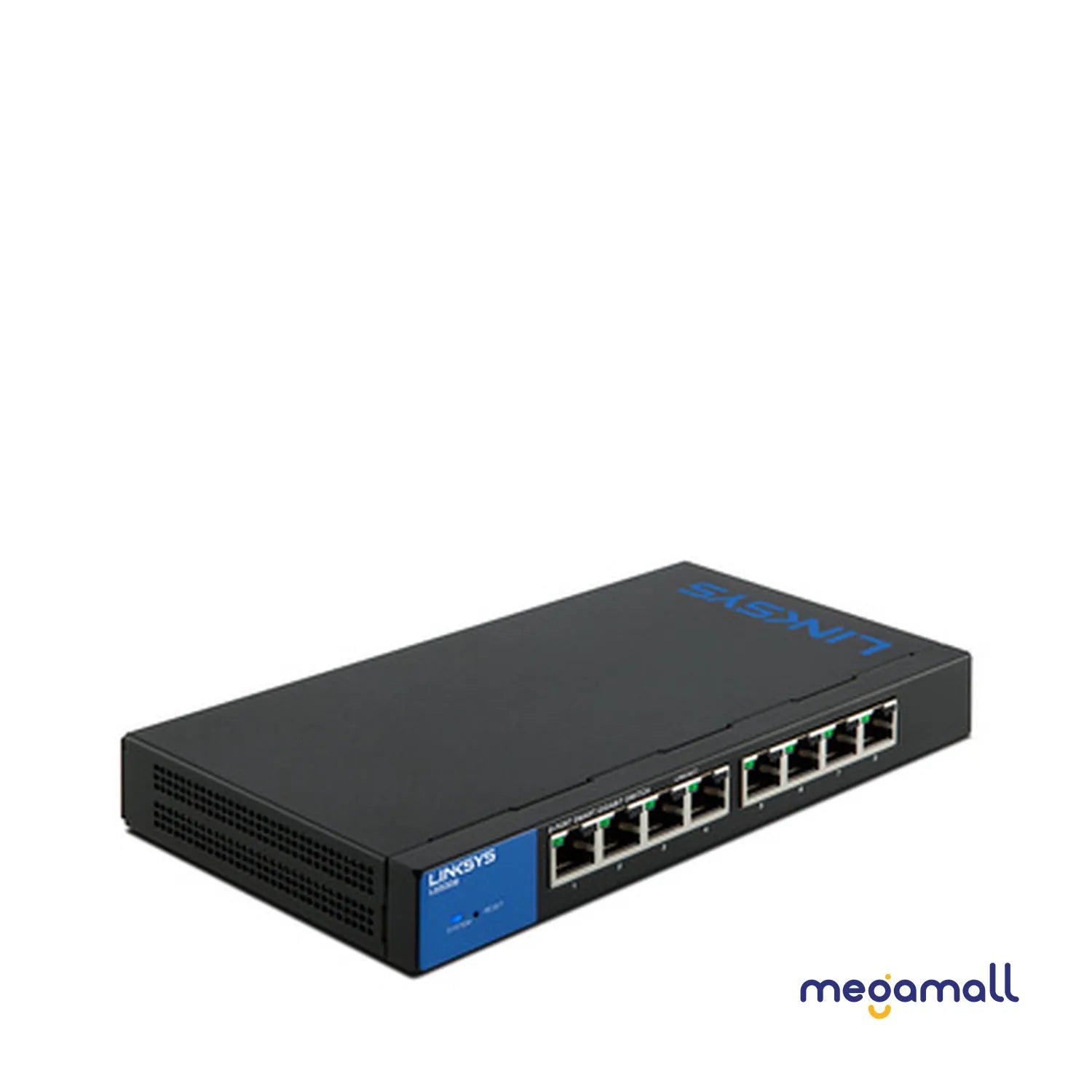

Designed for business-class management, security, speed, and quality of service, with 8 gigabit ethernet ports.
- Proven Performance and Reliability
- Easy Configuration and Management
- Advanced Network Security
- IPv6 Support
- Enhanced QoS
- Enhanced Security
- Meets EEE (Energy Efficient Ethernet) 802.3az standard
|
Switch Type |
Smart |
| Switch Ports | 05-Oct |
| Jumbo Frame (FE, GE) | 9K |
| LEDs | System (blue), Link/Act (green) |
| VLAN | Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication |
| Memory | 128MB |
| Forwarding Rate | 11.90 Mpps |
| Dimensions (LxWxH) | 210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.) |
| Weight | 0.528 kg (1.16 Ibs.) |
| System Power Consumption without PoE+ |
|
| Number of VLANs Supported | 128 active VLANs (4,096 range) |
| Operating Humidity | 10 to 90% RH |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Security Features |
|
|
Power Input |
|
| Spanning Tree | IEEE 802.1d Spanning Tree, IEEE 802.1s Multiple Spanning Tree, IEEE 802.1w Rapid Spanning Tree |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| RMON | Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis |
| Total System Ports | 8GE |
| Switching Capacity | 16 Gbps |
| HOL Blocking Prevention | Head-of-line (HOL) blocking prevention |
| Auto Voice VLAN | VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels |
| Other Management | Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP |
| Link Aggregation | IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group |
| Storm Control | Broadcast, flooding, and multicast |
| Management Interface |
|
| QoS - Scheduling | Priority queuing and weighted round robin (WRR) |
|
SNMP |
|
| QoS - Class of Service | Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based |
| Storage Humidity | 10 to 90% RH (non-condensing) |
| Green Power Mode | EEE+, Short Reach + Energy Detect |
| IGMP Snooping | IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups |
| Network Standards |
|
| Port Mirroring | Traffic on multiple ports (up to four ports) can be mirrored to another port for analysis with a network analyzer |
| Firmware Upgrade | TFTP Web Browser (HTTP/HTTPS) |
| QoS - Priority Levels | 4 hardware queues |
| Copper FE/GE Ports (RJ45) | g1-g8 |
| Warranty | 3 years |
