Description
| Mechanical | |
|---|---|
| Dimensions | Ø220 x 48 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 960 g (2.1 lb) With mount: 1090 g (2.4 lb) |
| Enclosure material | Polycarbonate, aluminum |
| Mount material | Stainless steel (SUS304) |
| Hardware | |

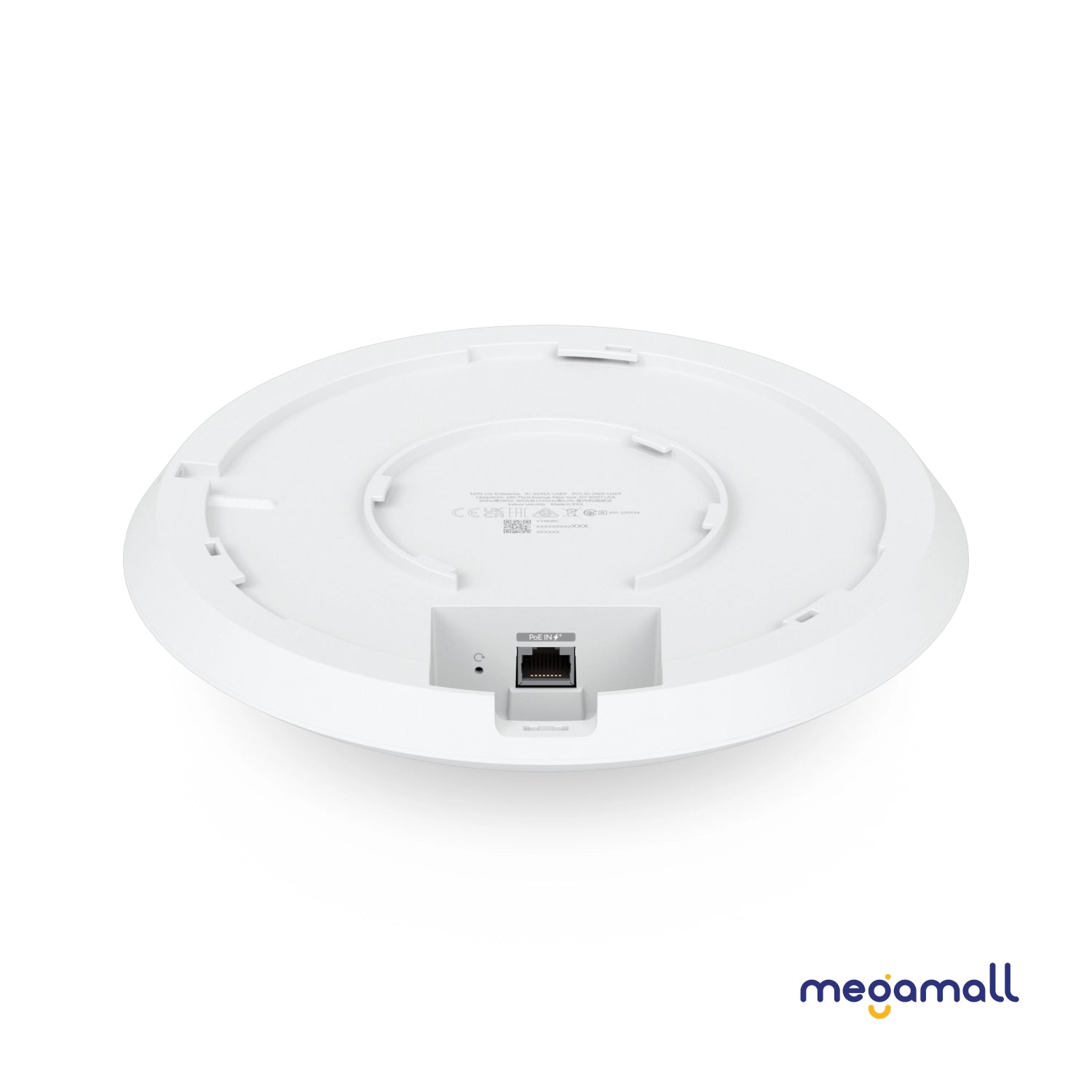

| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE+ |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Optional) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 22W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
22 dBm 26 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
| Max. data rate 2.4 GHz 5 GHz 6 GHz |
573.5 Mbps (BW40) 4.8 Gbps (BW160) 4.8 Gbps (BW160) |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
3.2 dBi 5.3 dBi 6 dBi |

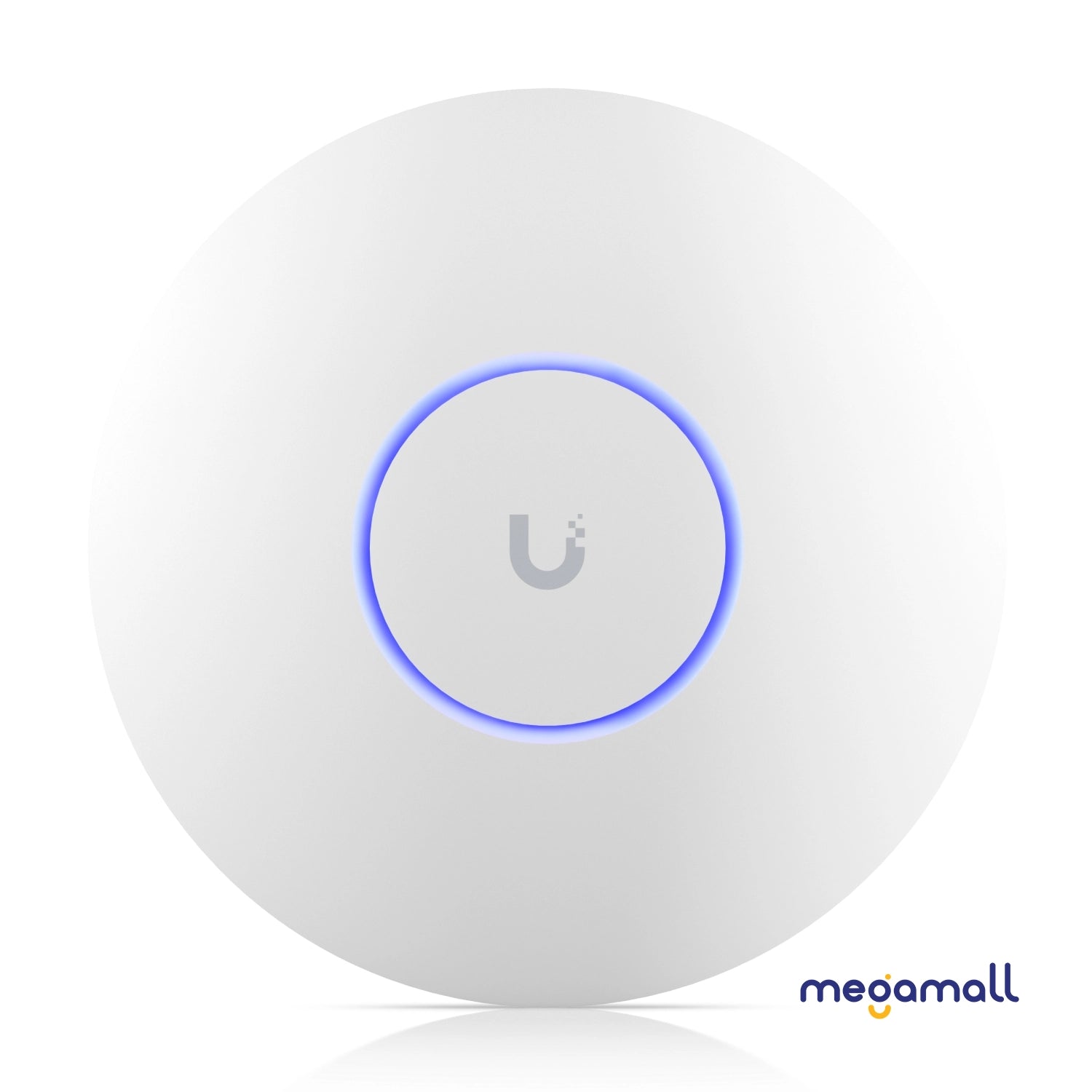

| LEDs | White/blue |
| Button | Reboot and factory-reset |

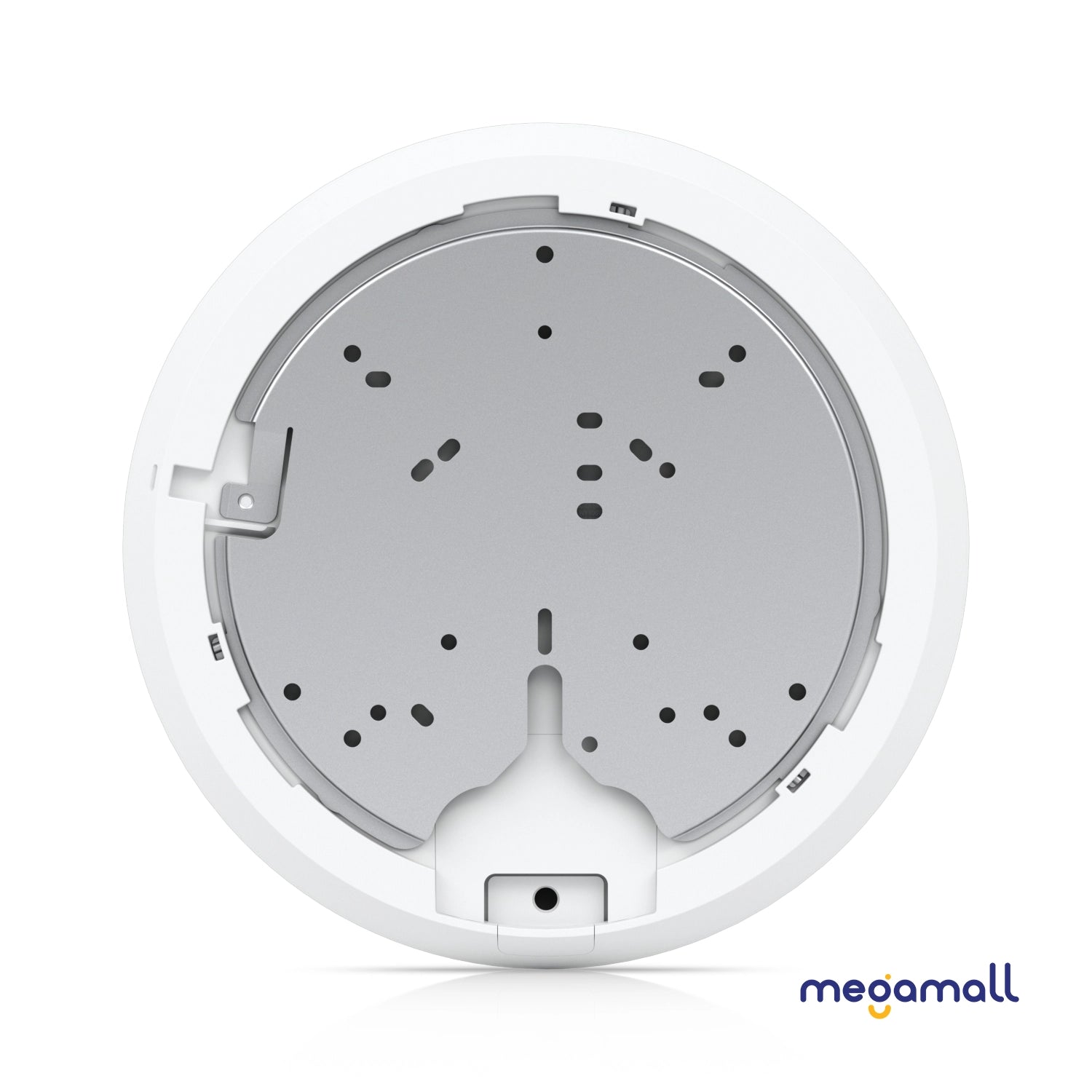

| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6/6E) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 600+ |
| Zero-wait DFS | Yes* *Supported with upcoming firmware versions. |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 7.2.91 and later |
