Description
| Mechanical | |

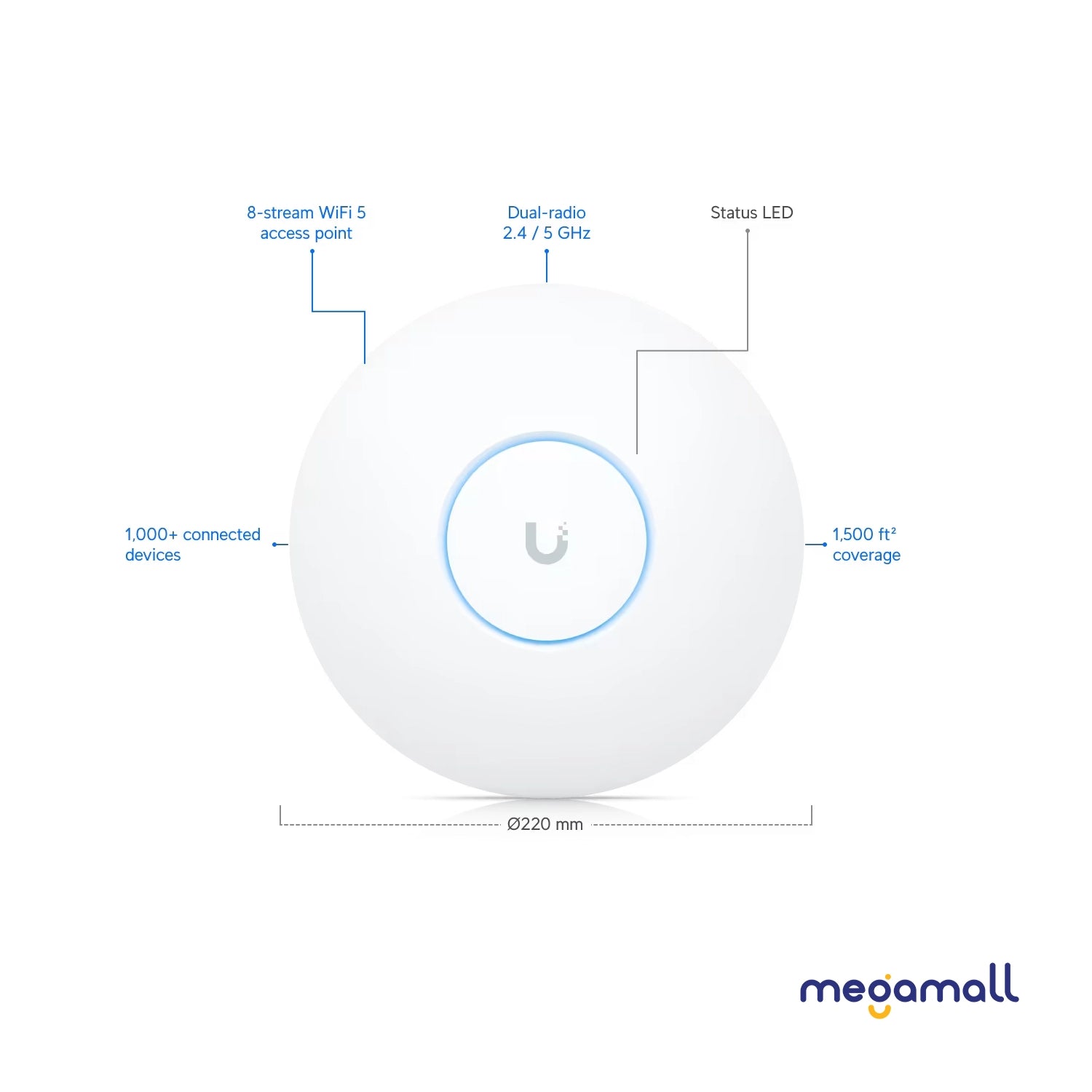

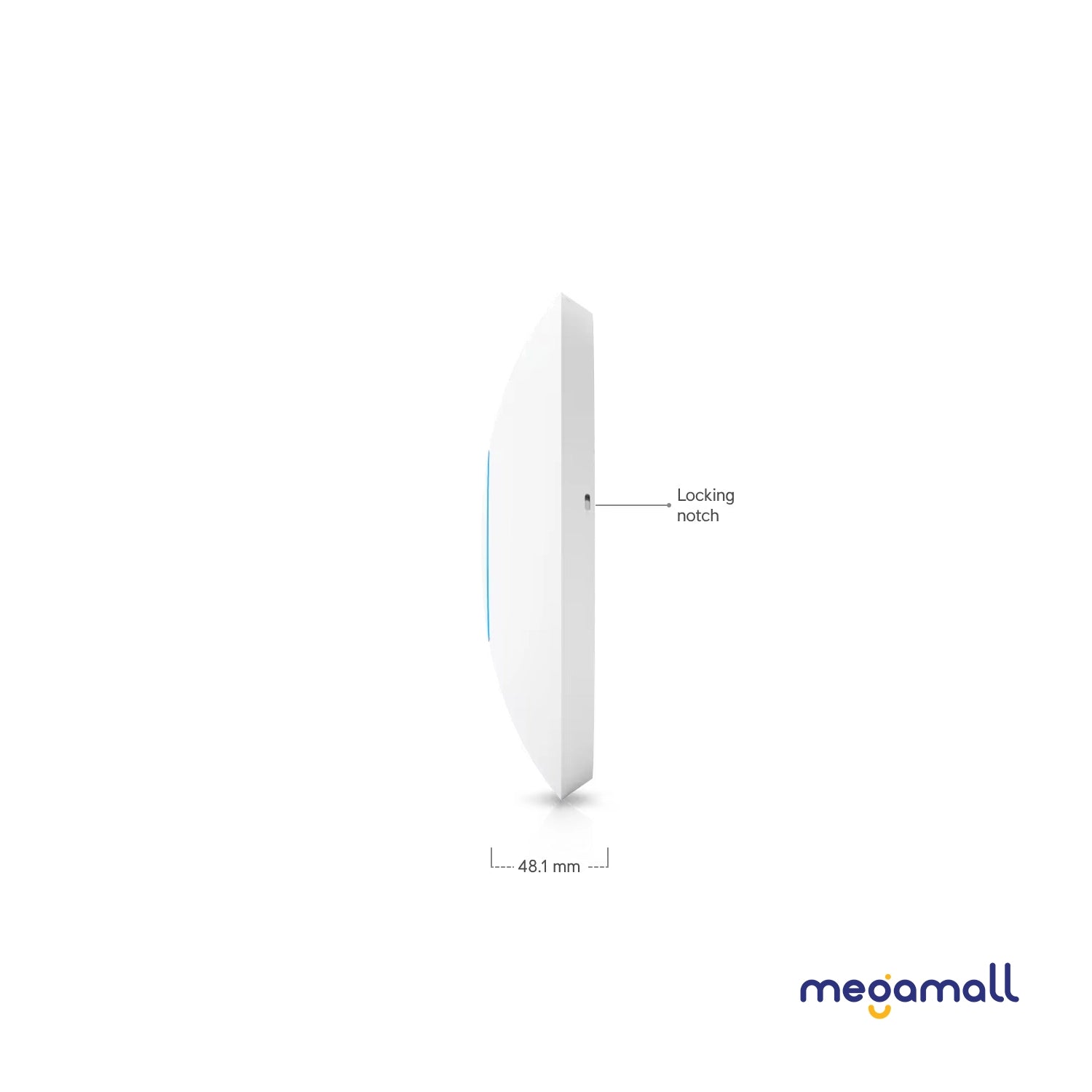

| Dimensions | Ø220 x 48.1 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 700 g (1.5 lb) |
| With mount: 830 g (1.8 lb) | |
| Hardware | |

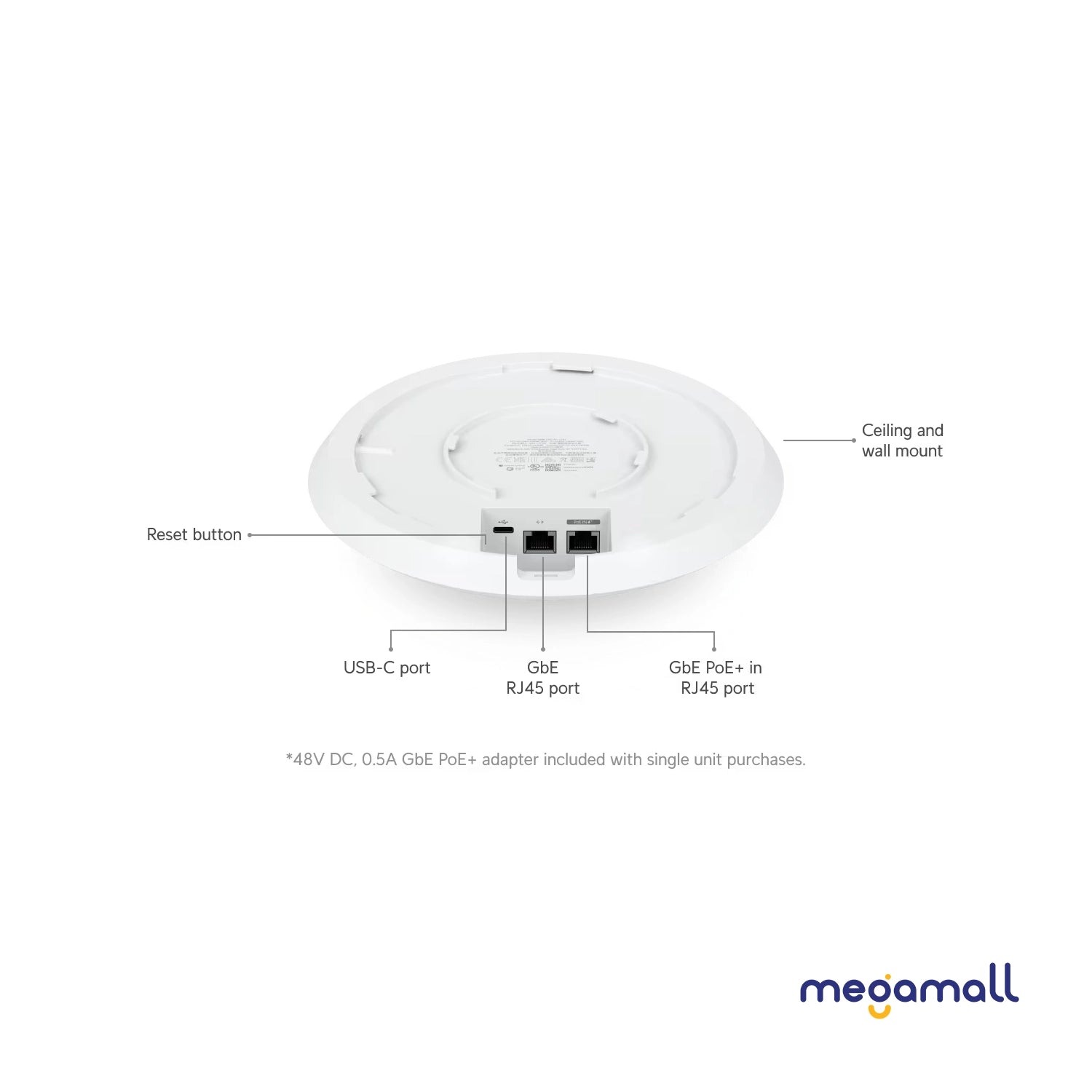

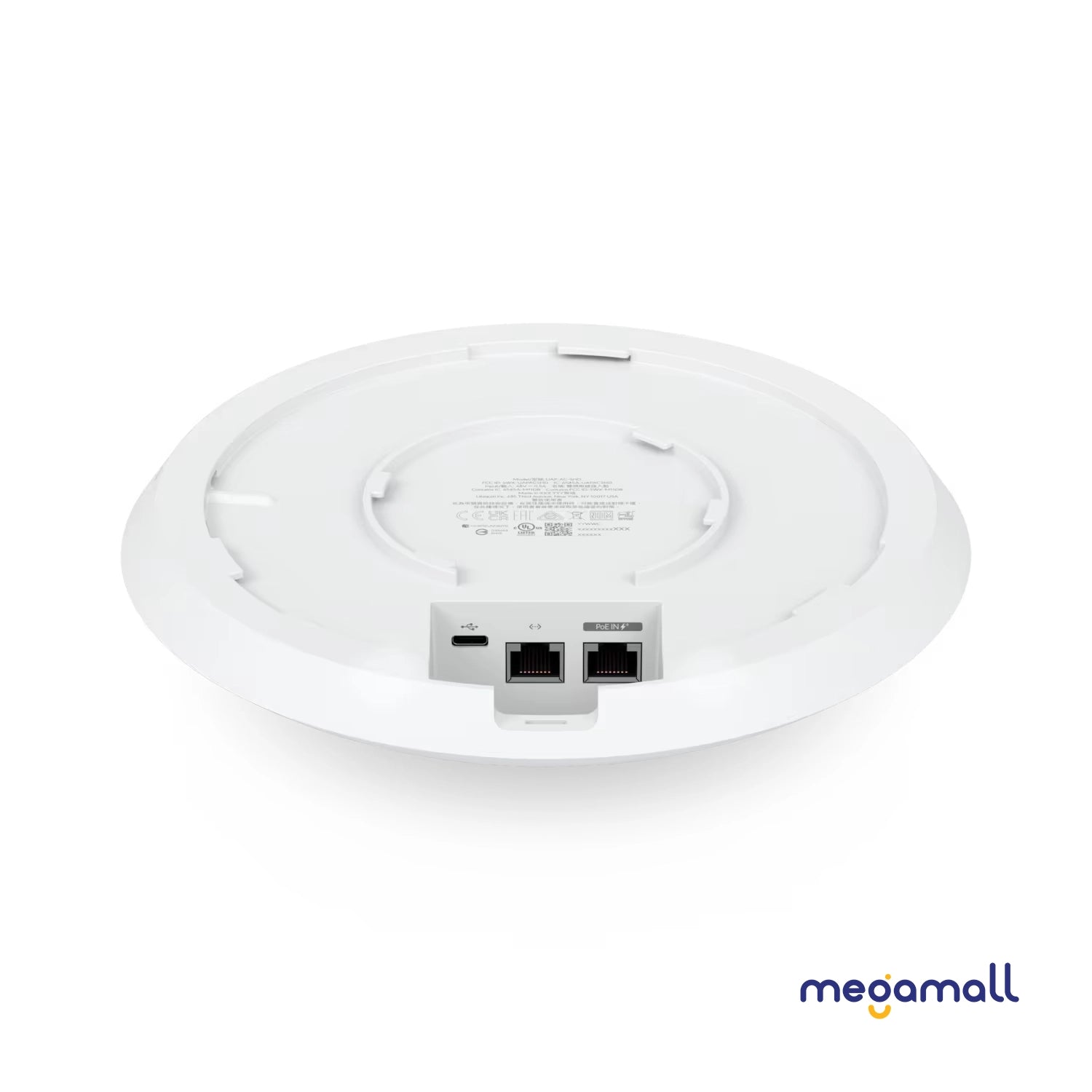

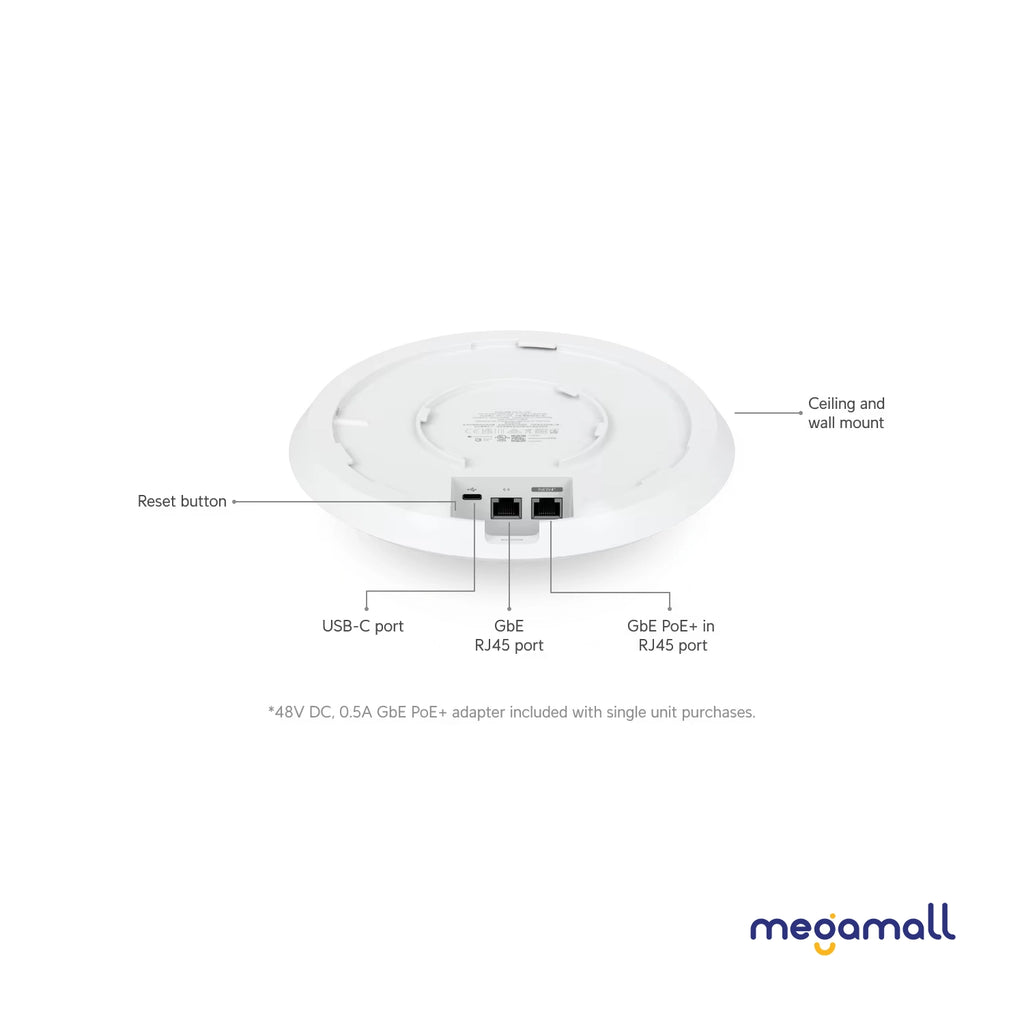

| Networking interface | (2) GbE RJ45 ports |
| Power method | PoE+ |
| Power supply | UniFi PoE Switch* |
| *5-packs do not come with PoE adapters. | |
| Supported voltage range | 44—57 VDC |
| Max. power consumption | 20W |
| Max. TX power | |
| 2.4 GHz | 25 dBm |
| 5 GHz | 25 dBm |
| MIMO | |
| 2.4 GHz | 4 x 4 |
| 5 GHz | 4 x 4 |
| Max. data rate | |
| 2.4 GHz | 800 Mbps |
| 5 GHz | 1.7 Gbps |
| Antenna gain | |
| 2.4 GHz | 6 dBi |
| 5 GHz | 6 dBi |
| Button | Factory reset |

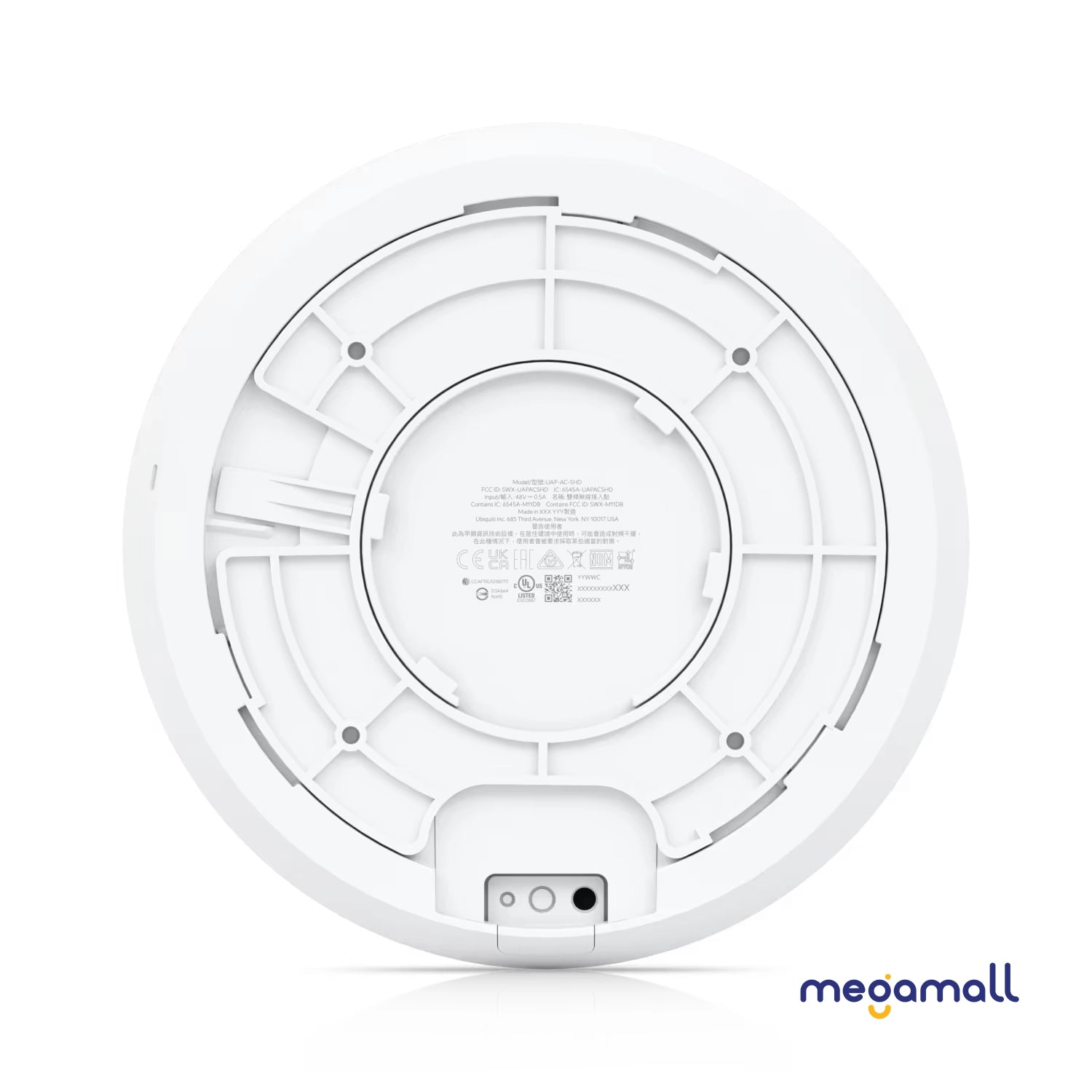

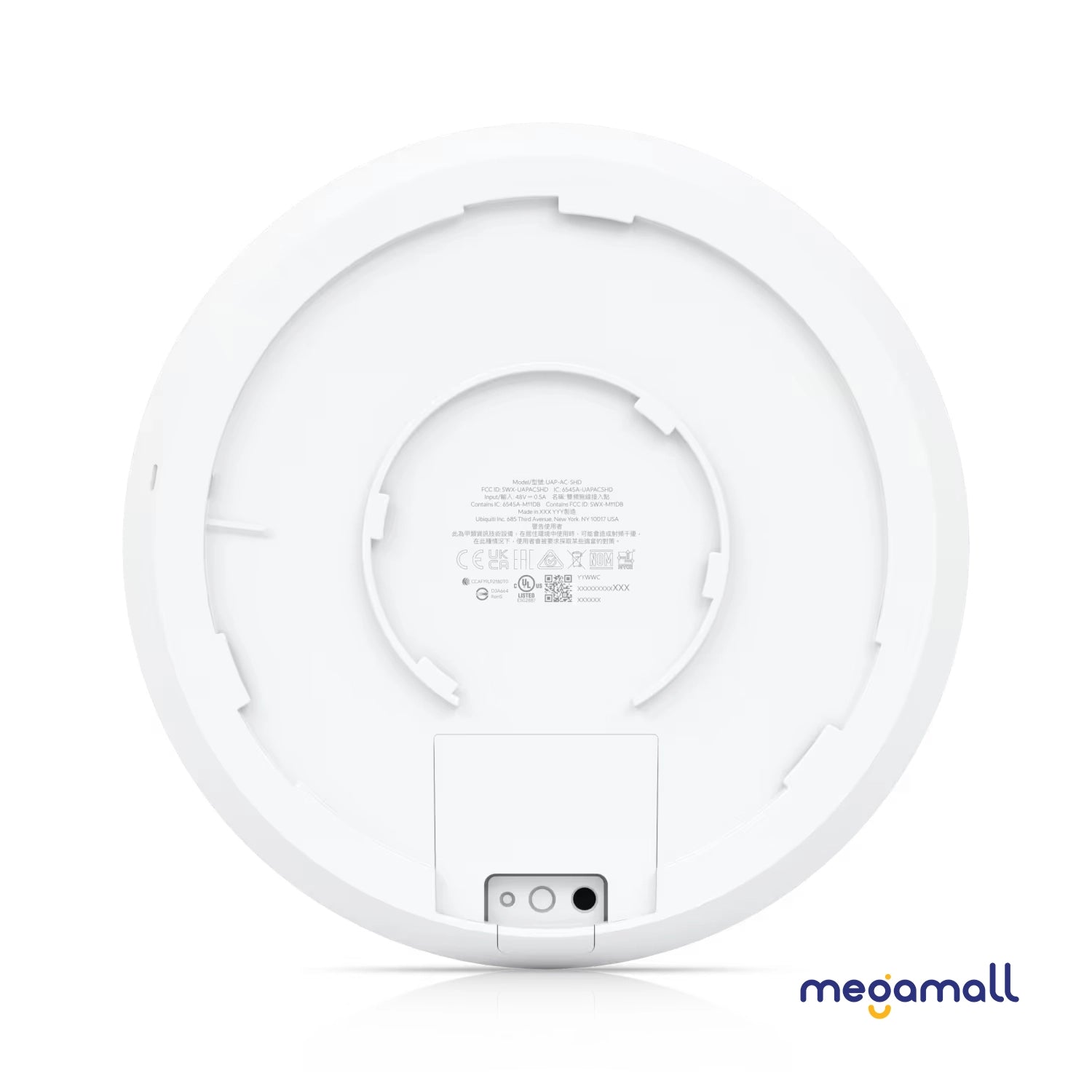

| Mounting | Wall/ceiling (Included) |
| Ambient operating temperature | -10 to 70° C (14 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, cULus |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ac-Wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| 802.11w (PMF) | |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Power save | Supported |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 1000+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
