Description
An out-of-the-box gateway solution for LoRa® technology , 863-870 MHz.

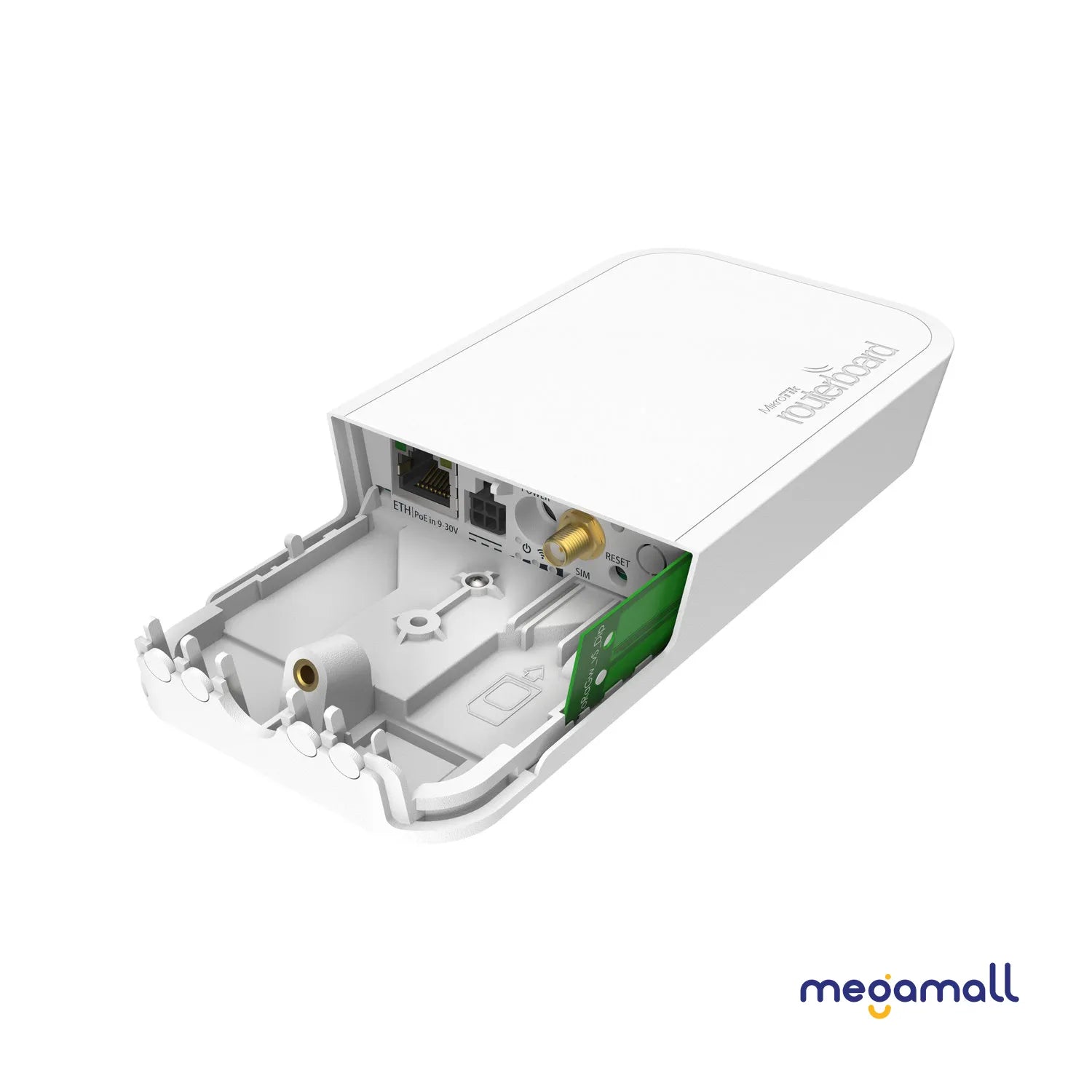

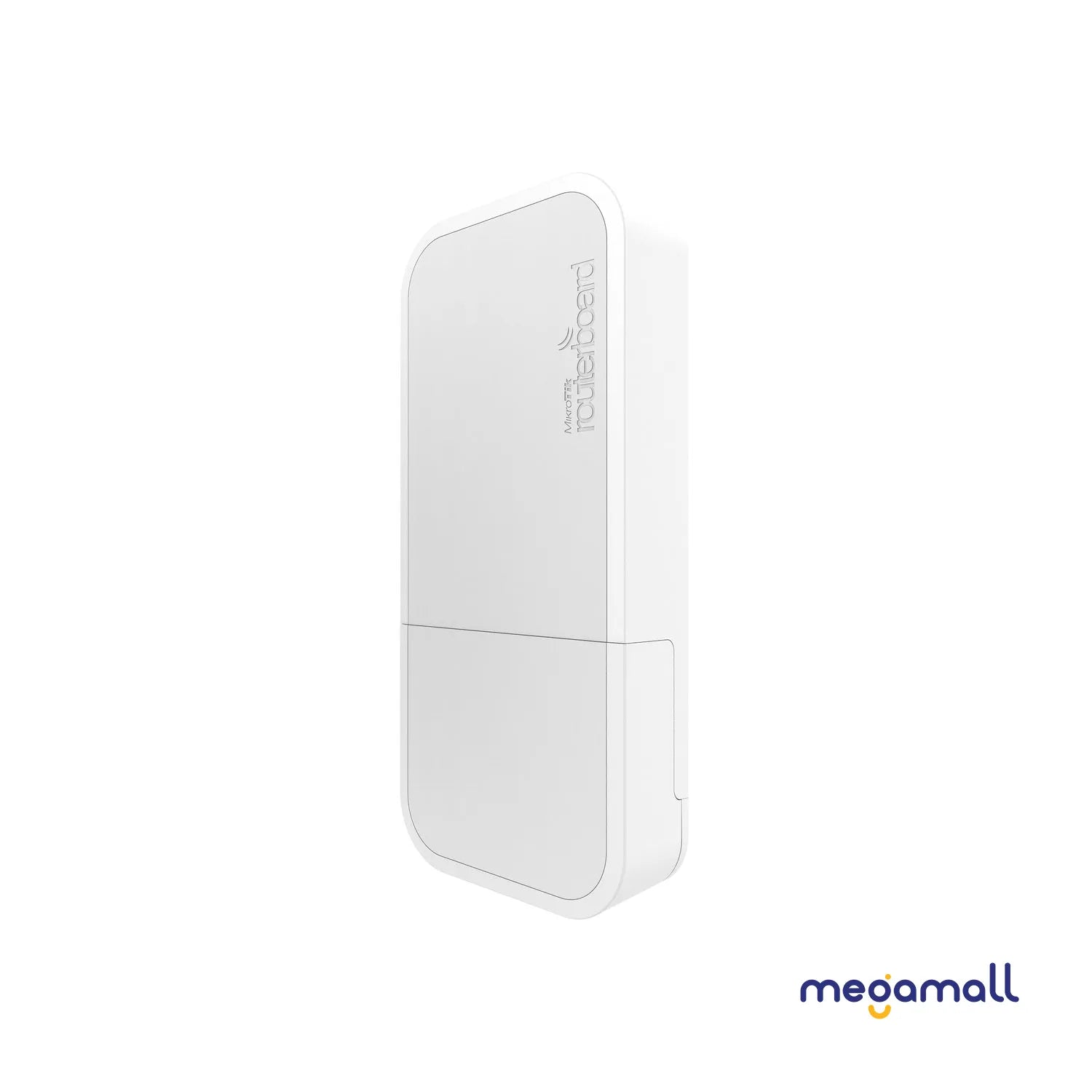

wAP LR8 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.
This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.
You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik Antenna kit for LoRa®.
wAP LR8 kit supports 863-870 MHz frequency, used in European Union, Russia, India etc.
Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR8 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.
*) the device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem
| Specifications | Product code | RBwAPR-2nD&R11e-LR8 |
| Architecture | MIPSBE | |
| CPU | QCA9531 | |
| CPU core count | 1 | |
| CPU nominal frequency | 650 MHz | |
| RouterOS license | 4 | |
| Operating System | RouterOS | |
| Size of RAM | 64 MB | |
| Storage size | 16 MB | |
| Storage type | FLASH | |
| MTBF | Approximately 100'000 hours at 25C | |
| Tested ambient temperature | -40°C to 60°C | |
| Powering | Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |

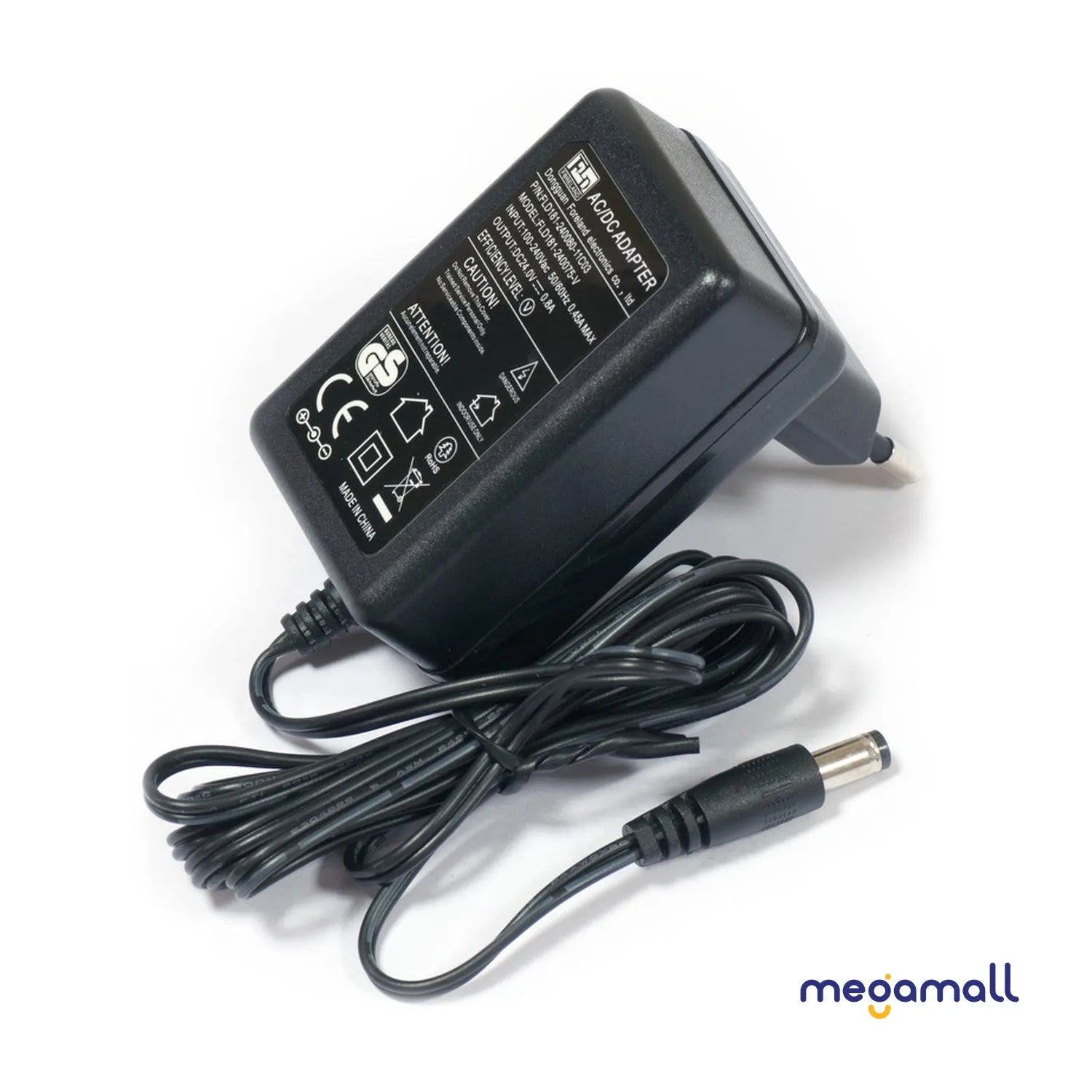

| DC jack input Voltage | 9-30 V | |

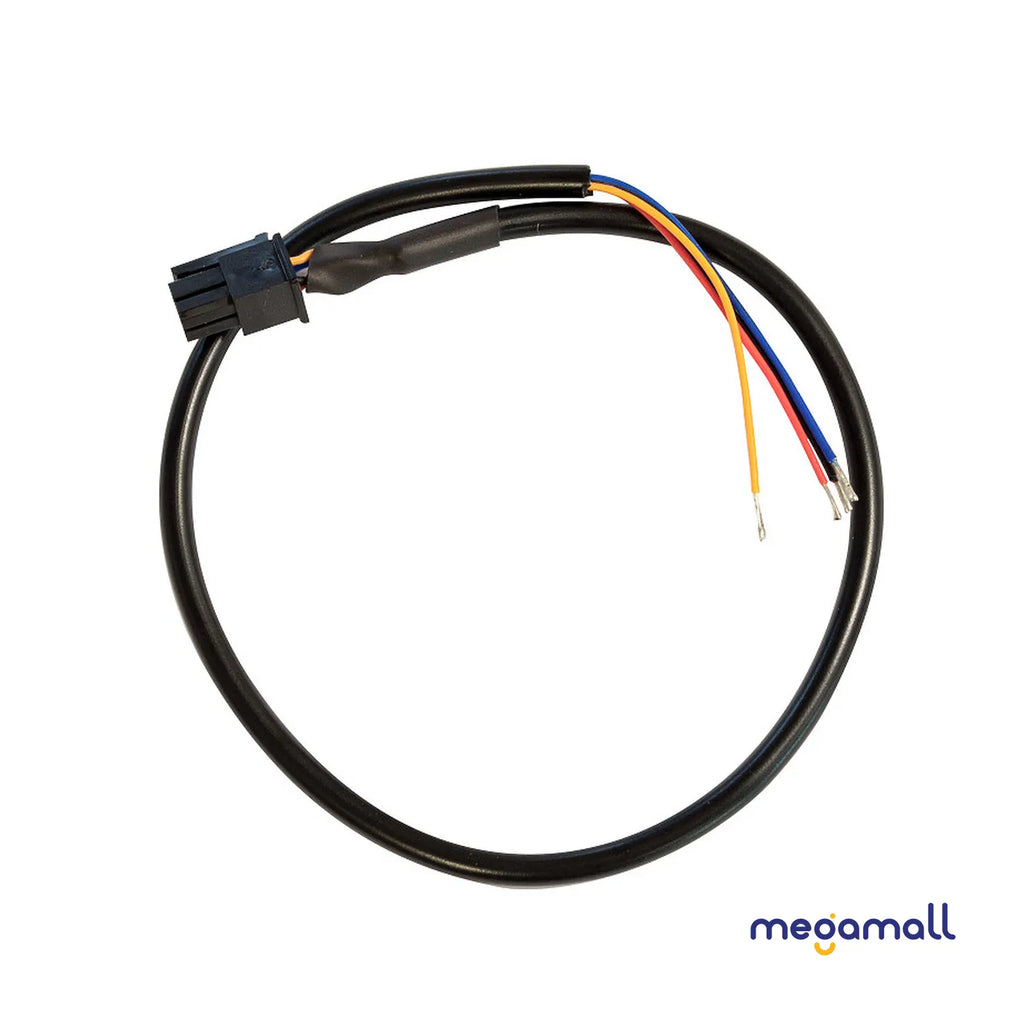

| Automotive input Voltage | 9-30 V | |
| Max power consumption | 7 W | |
| Cooling type | Passive | |

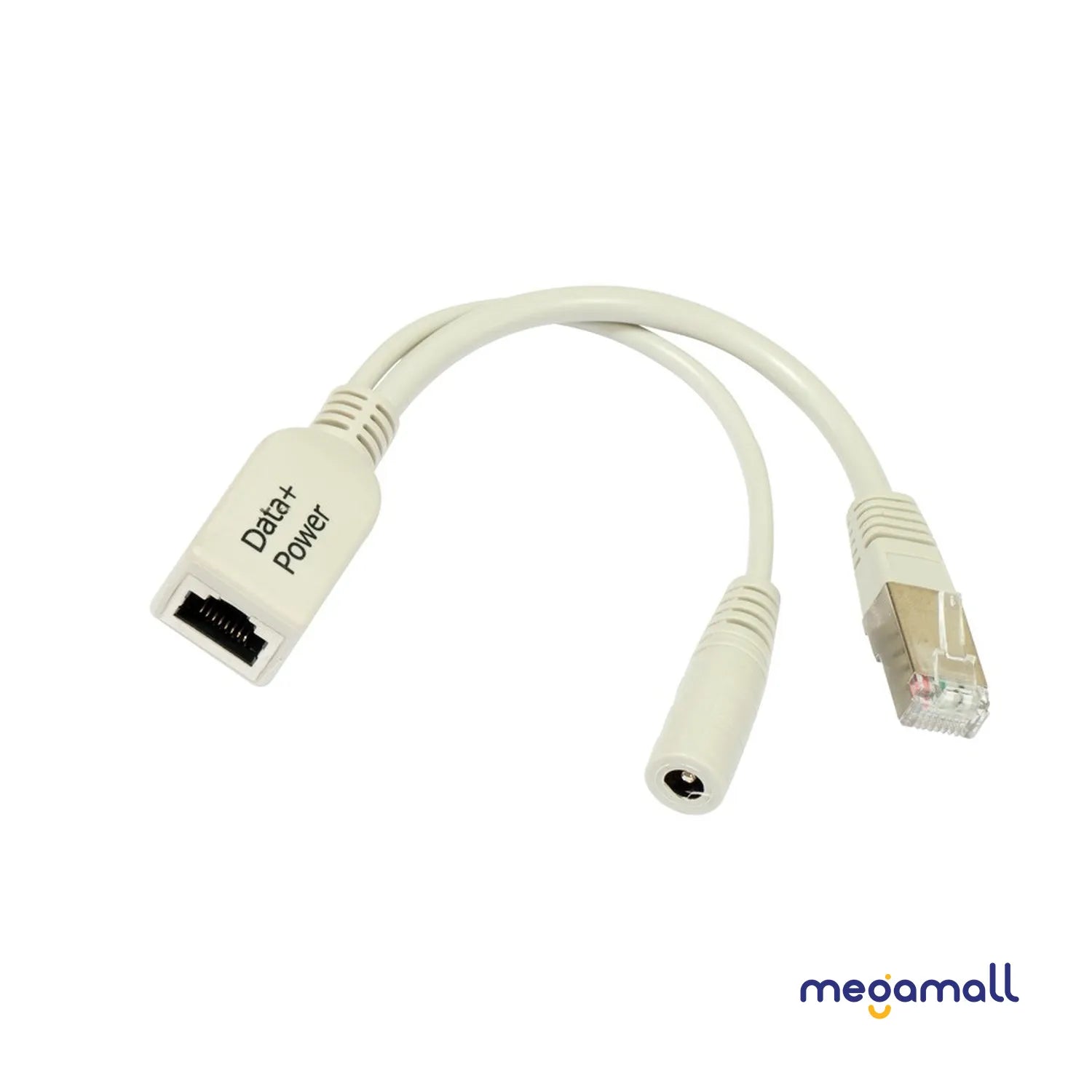

| PoE in | Passive PoE | |
| PoE in input Voltage | 9-30 V | |
| Wireless specifications | Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 | |
| Wireless 2.4 GHz standards | 802.11b/g/n | |
| Antenna gain dBi for 2.4 GHz | 2 | |
| Wireless 2.4 GHz chip model | QCA9531 | |
| Wireless 2.4 GHz generation | Wi-Fi 4 | |
| Ethernet | 10/100 Ethernet ports | 1 |
| Peripherals | Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 | |
| Other | PCB temperature monitor | Yes |
| Voltage Monitor | Yes | |
| Warranty | 1 year | |
| Certification & Approvals | Certification | CE, FCC, IC, EAC, ROHS |
| IP | 54 |
